Warehouse Storage for Photon Marine

3
Date
08.2025
Category
Client
Proton Marine
Time
1 week
Lenokers installed a customized pallet racking system with mesh decking and upright protection for Photon Marine’s eco-friendly warehouse in Portland. The project was completed in just 3 days, ensuring safe, efficient, and sustainable storage tailored to their electric vessel operations.
Task
Designing a Sustainable Pallet Racking System for Photon Marine
Complexity

Project Challenges and Technical Highlights

Short timeline – the client requested installation during an active relocation.
Environmental focus – racks had to align with Photon Marine’s eco-friendly mission.
Safety requirements – additional upright protection in contrasting OSHA-yellow was specified for every rack frame.

Technical Highlights

  • 3-level pallet racking system with mesh decking

  • Upright guards on all columns for load protection

  • Customized design for electric forklift operation and optimized turning radius

  • Installation timeline: completed in just 3 working days

Implementation
Assessed warehouse layout and concrete floor condition before installation
Designed pallet racking configuration optimized for electric forklift operation

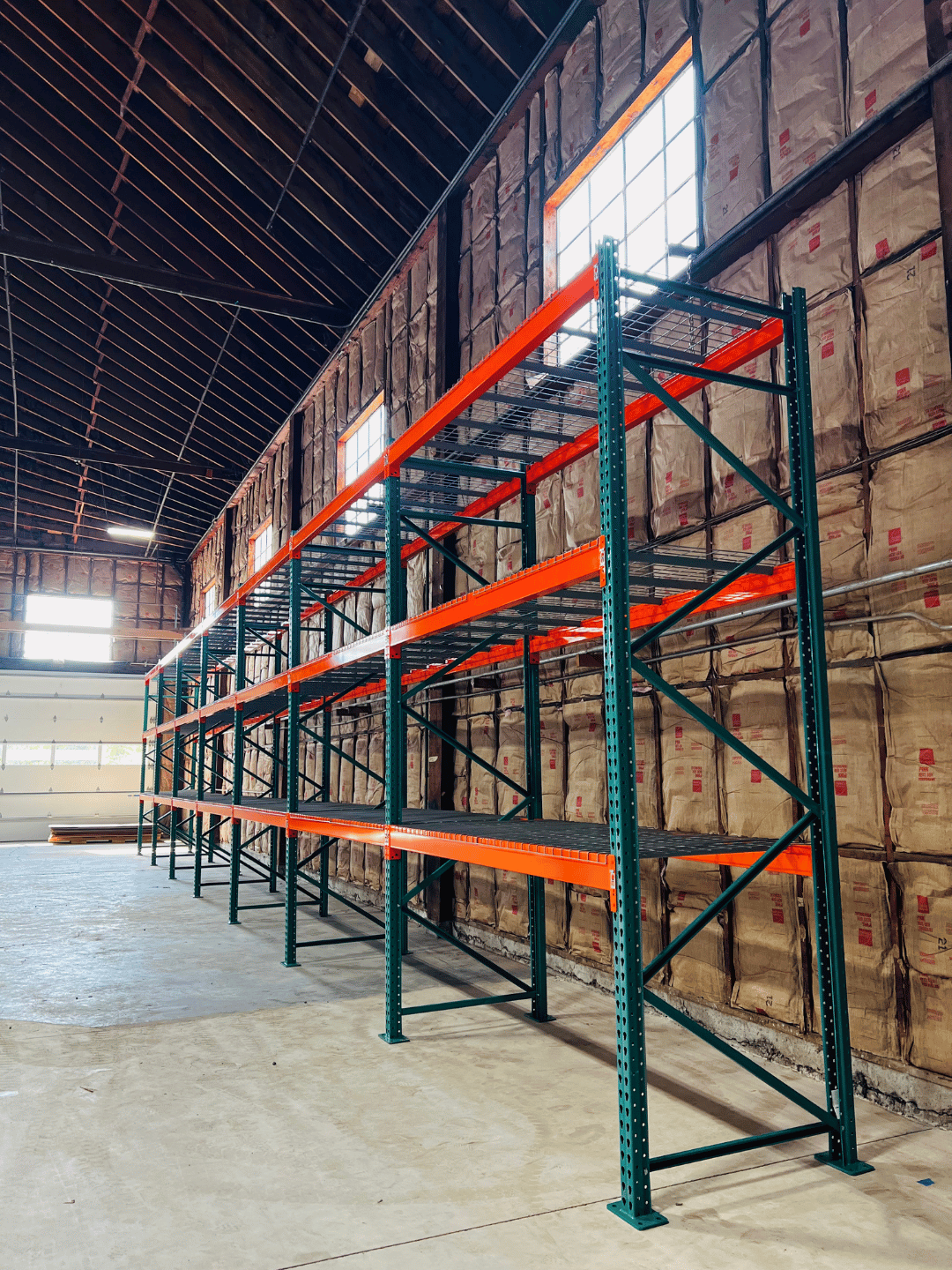

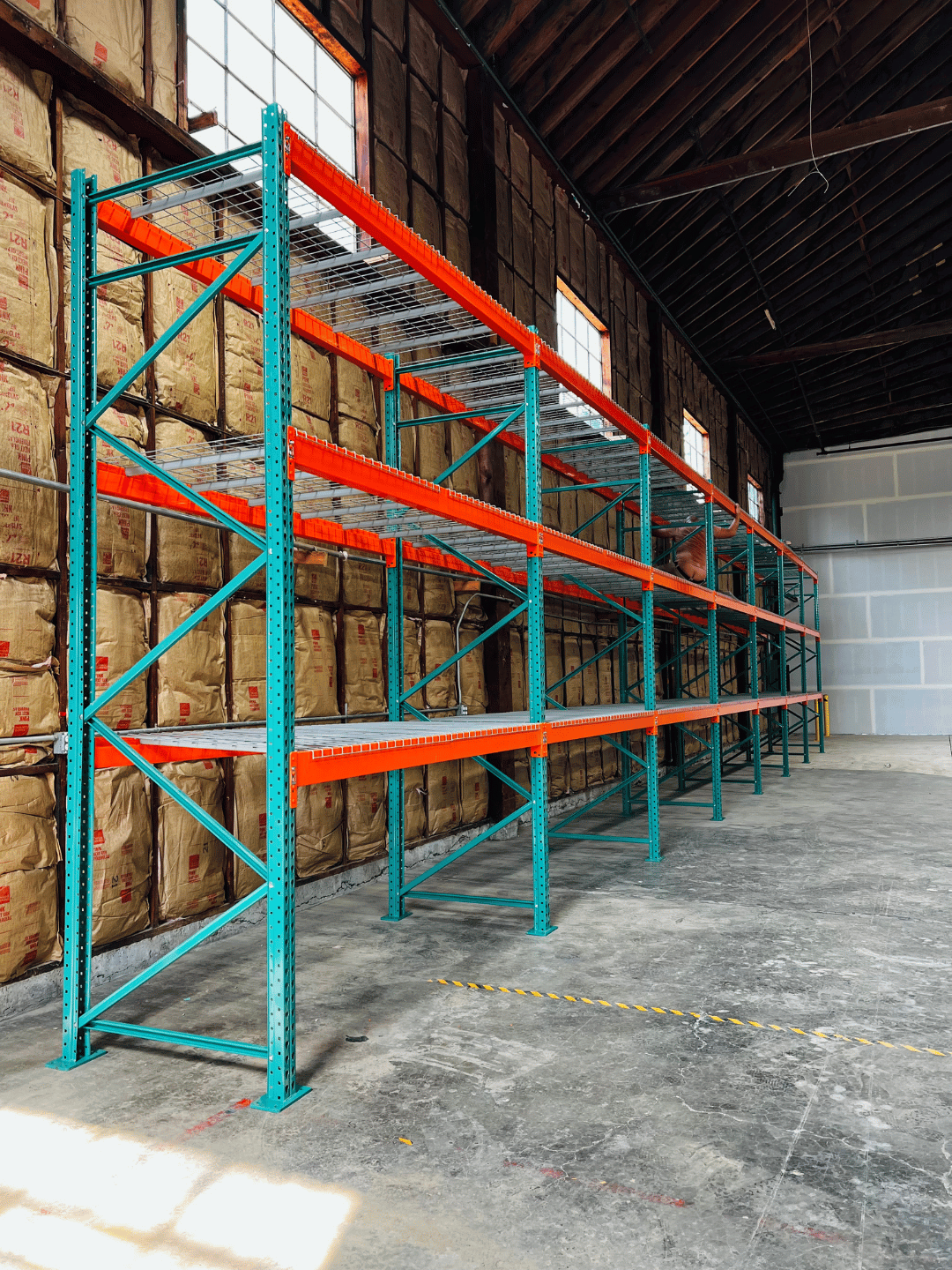

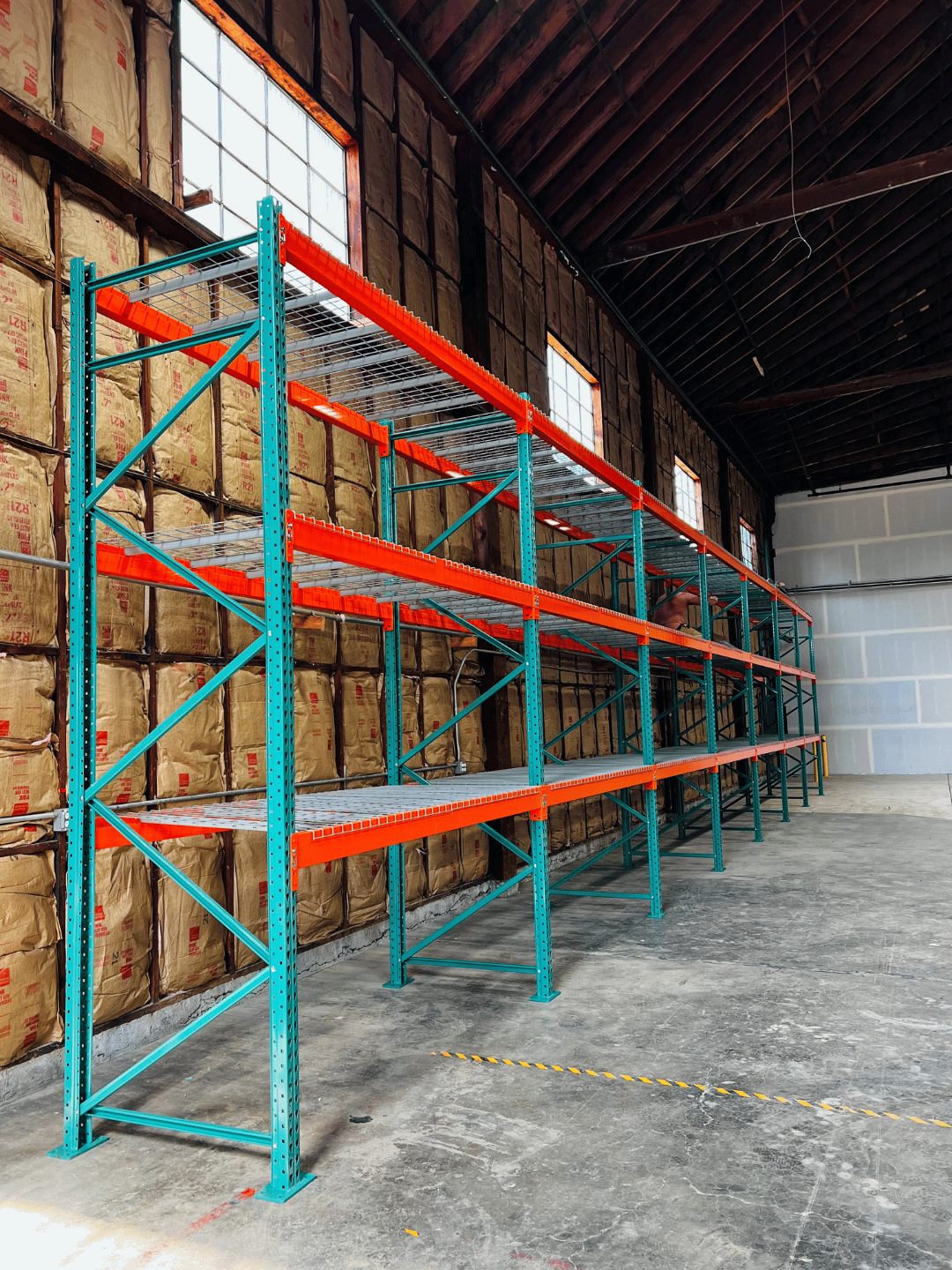

Installed 3-level pallet racks with mesh decking for safe, efficient storage

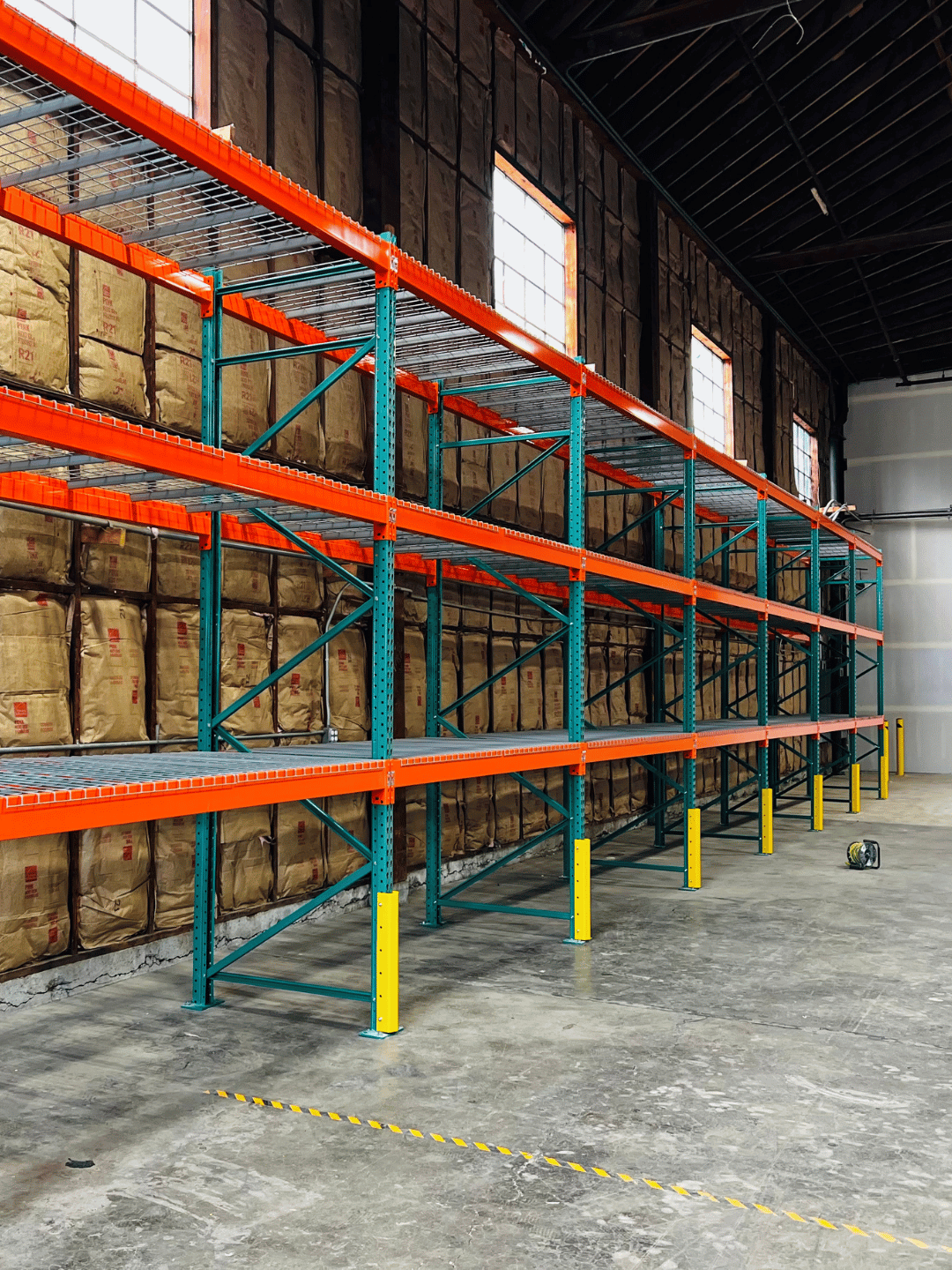

Added upright guards in OSHA-yellow for maximum visibility and safety
Completed full installation and safety check within 3 working days
Details
Total floor area
12,000 sq. ft. warehouse in North Portland
Shelf storage area
3-level pallet racking with mesh decking
Levels of shelf storage
3 tiers + ground level for forklifts
Load on one shelf
Up to 3,000 lbs per beam level
Storage capacity
Over 1,500 pallet positions, optimized for electric forklift use
Project details

Implementation

Site Assessment and Design

The project began with a site inspection to evaluate load requirements and the condition of the warehouse floor. Based on these findings, we designed a selective pallet racking system with wire mesh decking, ensuring smooth forklift operation and efficient product flow.

Safety Integration

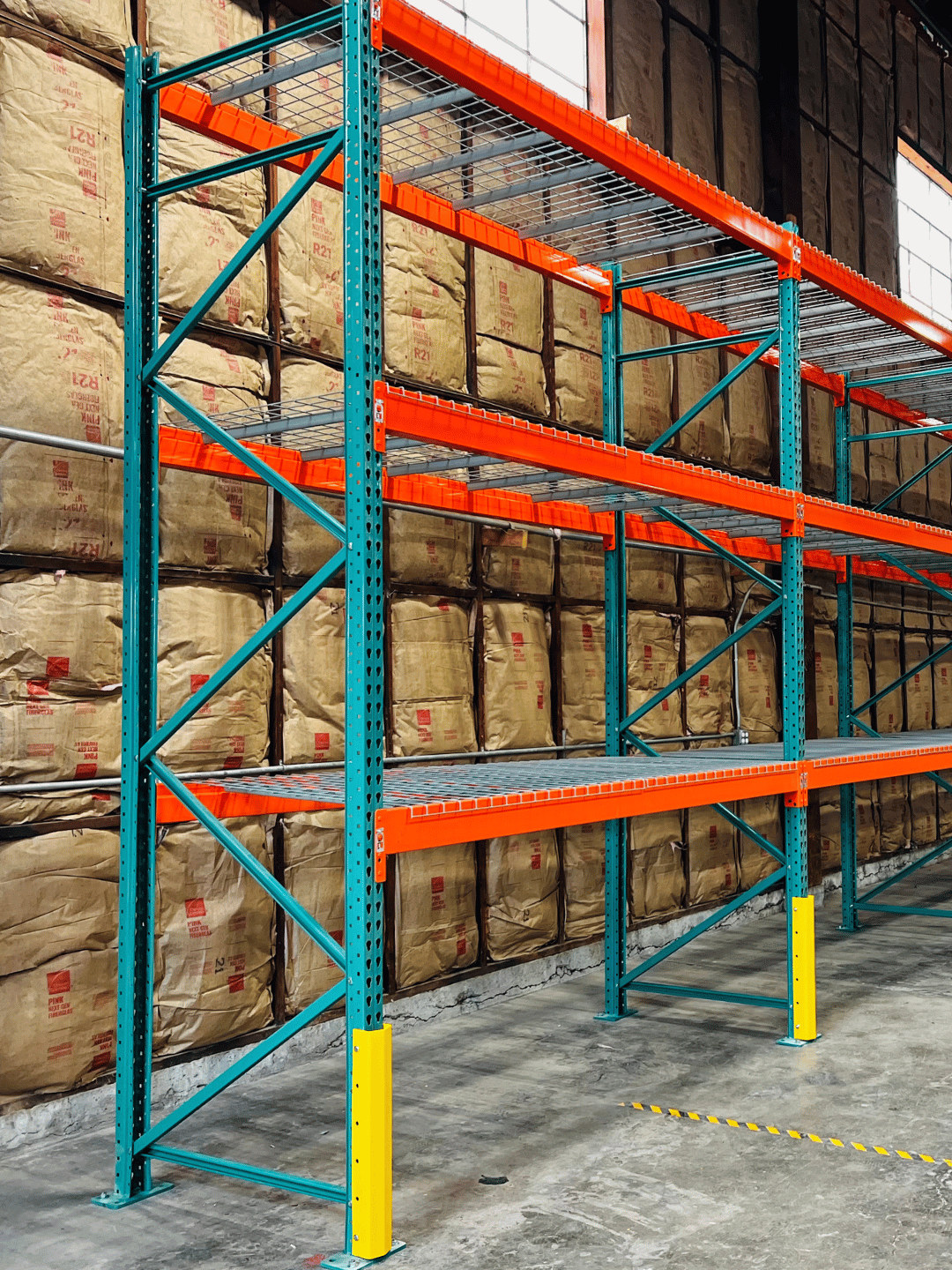

Safety was a top priority. Each upright frame was fitted with OSHA-yellow steel guards to protect against forklift impacts and ensure compliance with safety standards.

Fast Installation

After design approval, our team completed the full installation and safety compliance check in just three working days. The system was ready to use immediately and aligned with Photon Marine’s operational and sustainability needs.

Specifications

Warehouse Details

  • Location: North Portland, Oregon

  • Rack Type: Selective pallet racks with wire mesh decking

  • Storage Levels: Three tiers

  • Completion Time: 3 working days

Special Feature: Upright guards installed on every frame for long-term safety and durability.
