Mobile pallet racks
Warehouse Creation Systems

Mobile pallet racks

Storage utilization: 80-90%
Remote and computer-controlled storage
Access to any pallet
Needed installation over guided bases
Price:
Request for price
Purpose

The installation of a mobile pallet racking system requires a good quality base, in order to properly install the guides, which must slide laterally. By sliding sideways, efficient space utilization is achieved by eliminating many fixed aisles. Thus, aisles are only opened when the operator requests access. These motorized mobile bases are electronically powered and guided on rails on the floor.

During the low season, mobile racks can be presented as a single storage area, and in the high season, mobile pallet racks can move apart and provide access to any pallet needed. This way, you can utilize space efficiently, increase your storage capacity, and reduce the storage area required.

  • GMA standard pallet size
  • Non-standard pallets
  • Containers
  • Barrels
No data was found
Specifications
Height
up to 40 ft
Load per section
44 000 lbs
Load on the mobile base
881 000 lbs
Speed of movement
0.2 ft/second
Description

For efficient space utilization, install a mobile pallet racking system. This system will help you maximize storage capacity by eliminating aisles. However, notice that you must be sure of the quality of your floor before pre-installation because the guided bases that slide laterally require a smooth base. So before installing, ask us if your base will fit and how to do it right.

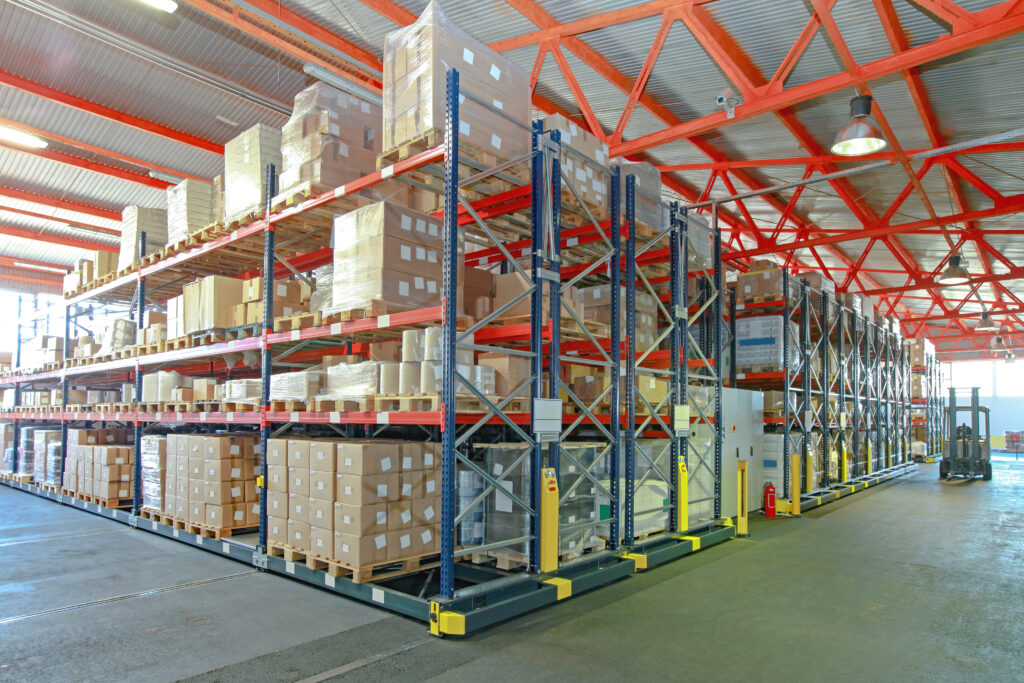

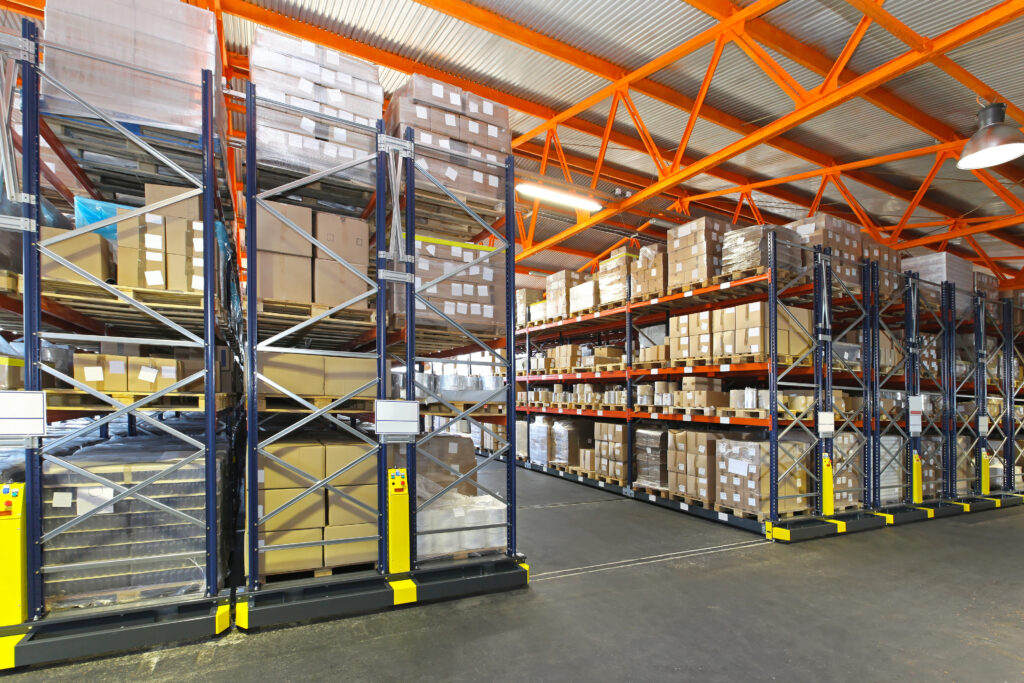

Thus, the mobile pallet racks are mounted on movable bases that move along rails built into the floor in advance. Moving the needed racks apart, you get one specific working aisle while the other racks remain as single storage. In this way, you get quick access to the storage.

The mobile racking system has remote computer-controlled storage. The mobile racks are controlled by a remote control that the warehouse equipment operator has, as well as by buttons at the ends of the lines of the racks. There are many photodetectors, so the system is automated and completely safe. As long as a forklift or a worker is inside, the system will not allow the work aisle to be moved.

Their speed of movement of 0.2 ft/second is enough to enter a new corridor with little delay after completing the last task. Mobile racks do not impose significant restrictions on the weight and dimensions of the load. The total load on one mobile base (doubled) can reach 881,000 lbs, and the load per section is about 44,000 lbs.

We can go on explaining and listing the benefits of these racks, as Lenokers has been working and installing/dismantling them all over the world for decades. We know every tiny detail about them. Ask us; we are sure we can fulfill your requirements.

Contact us
Monday – Friday 8:00am – 5pm
Saturday, Sunday – Closed
Terms of delivery
Price

The price depends on the volume and your technical task

Time

Production 3-5 weeks
Delivery up to 7 days
Installation 1-5 days

Payment

When ordering up to $3,000, a 100% prepayment is required
For orders over $3,000, a 50% down payment is required, the remaining 50% before shipment
Payment is made in any convenient way for you

Manufacturer

All products are made in the USA
