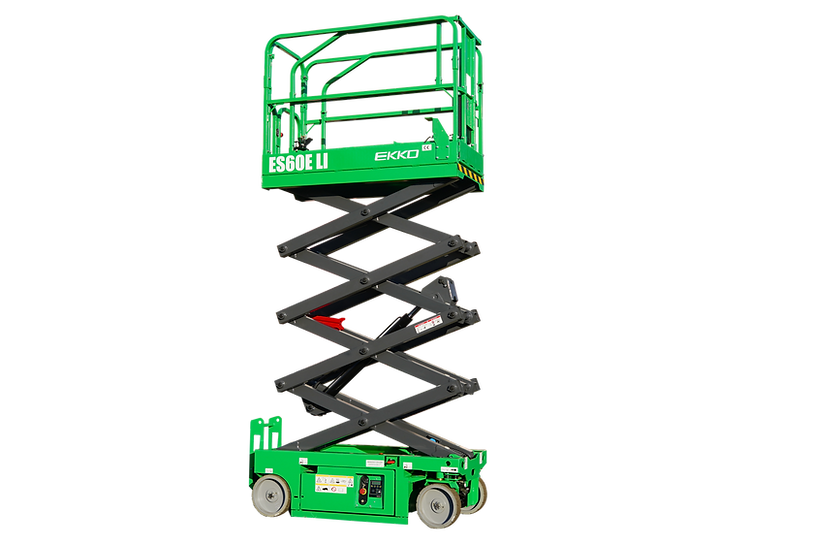

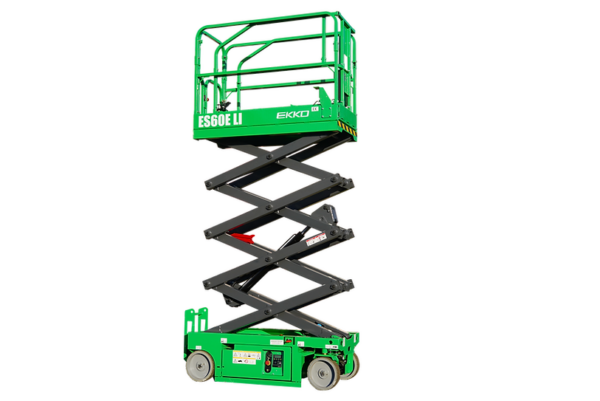

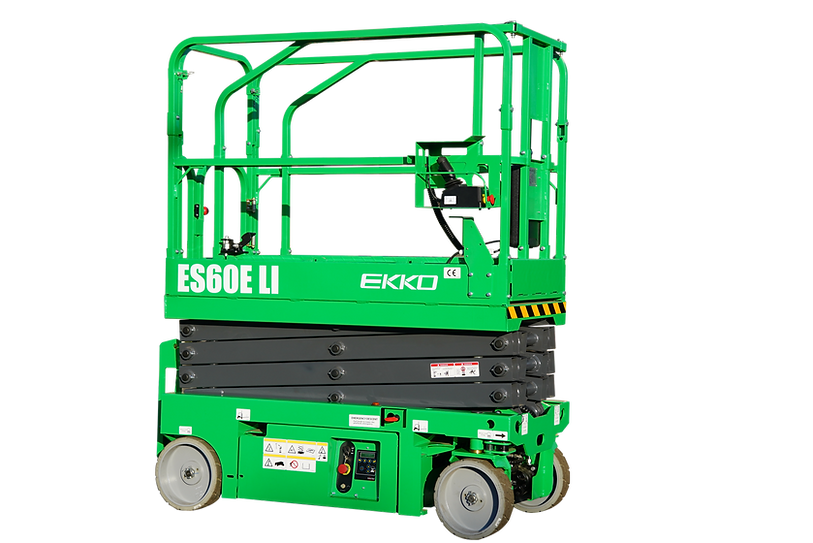

EKKO ES60E-Li Aerial Work Platform Lift Height 19' (228'')

Description

The EKKO ES60E-Li Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

-Load Capacity 500 lb

-Raised Height 19′ (228″)

-Lowered Height 86”

-Size: Length 65″ x Width 30″

-Steel construction

-3 Years Limited Warranty

Product Info

	ES60E-LI
product dimensions
A1 Max working height	Inch	25.5′ (307”)
A2 Max platform height	Inch	19′ (228”)
B Length	Inch	72.44
C Width	Inch	29.92
D Overall height (guardrail not folded)	Inch	85.75″
Overall height (folding guardrail)	Inch	72.5″
Platform size (length EX width FX height G)	Inch	64.96×29.92
G Guardrail height	Inch	43.31
H Platform extension size	Inch	35.43
I Ground clearance (closed state)	Inch	2.36
J Ground clearance (lifting state)	Inch	0.59
K Wheelbase	Inch	1.36
product performance
Maximum number of workers (indoor/outdoor)		2 / –
load rating	LBS	506
Extended platform load rating	LBS	264
Driving speed (folding state)	km/h	0~4
Driving speed (lifting condition)	km/h	0~0.8
Minimum Turning radius (inside)	Inch	0
Minimum turning radius (outside)	Inch	61
Rise/fall time	s	18/28
Maximum allowable tilting Angle (front/left/right)	°	3°/1.5°
Maximum allowable wind speed (indoor/outdoor)	m/s	0/0
Maximum allowable lateral force (indoor/outdoor)	N	400/0
Gradeability	%	30
control		proportional control
actuator		Double front wheels
braking		Double rear wheels
Tyre specification/type	Inch	12.71*3.93
Product power
Lift/drive motor	kw	2.2/0.7×2
Battery voltage/capacity	V/Ah	25.6V/150AH Lithium
Charger input voltage	VAC	25.6V
Charger output current	A	36A
control voltage	VDC	24
Hydraulic tank capacity	L	8
total weight	lbs	3356
