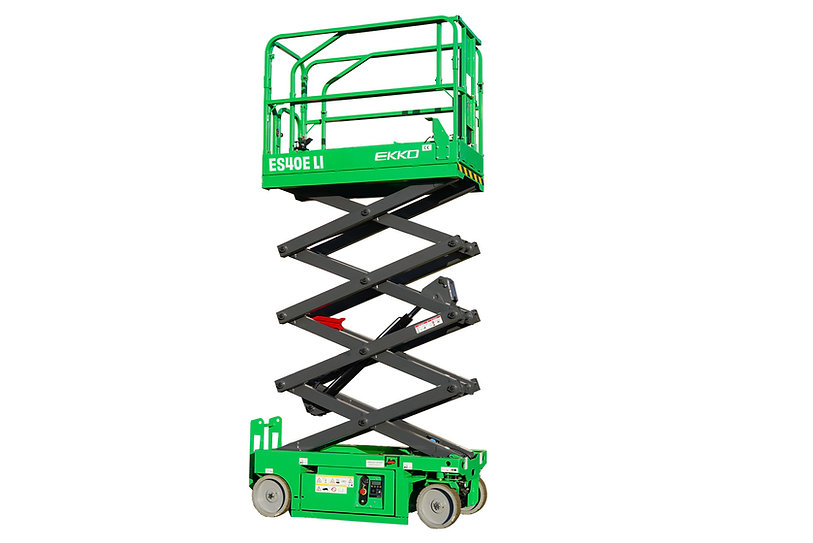

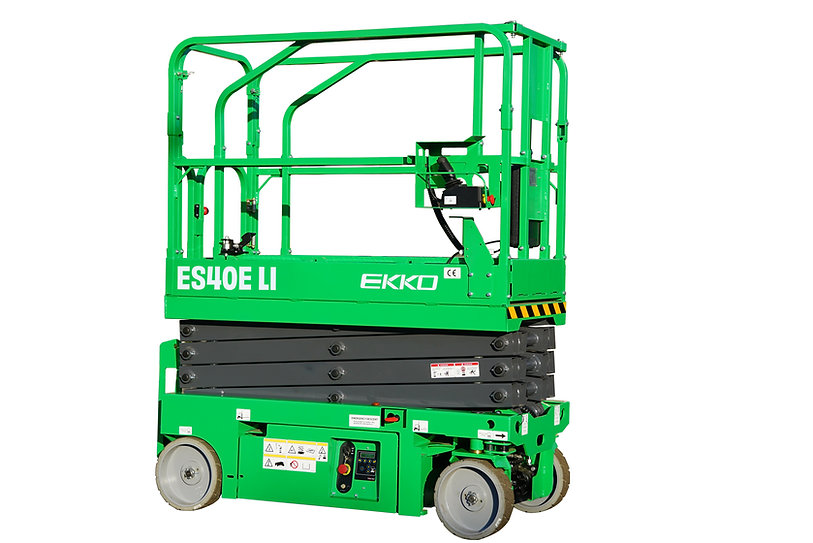

EKKO ES40E-Li Aerial Work Platform Lift Height 13' (157'')

Description

The EKKO ES40E-Li Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

-Load Capacity 500 lb

-Raised Height 13′ (157″)

-Lowered Height 77”

-Size: Length 57″ x Width 30″

-Steel construction

-3 Years Limited Warranty

Product Info

	ES40E-Li

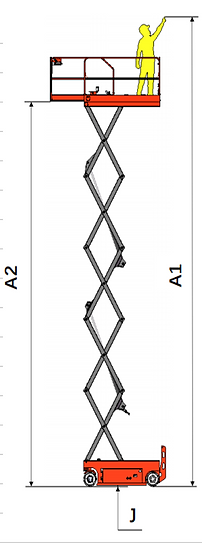

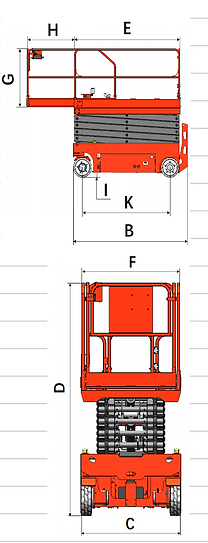

product dimensions
A1 Max working height	Inch	19.7′ (236.2”)
A2 Max platform height	Inch	13′ (157”)
B Length	Inch	57.1
C Width	Inch	29.9
D Overall height (guardrail not folded)	Inch	76.8
Overall height (folding guardrail)	Inch	63
Platform size (length EX width FX height G)	Inch	50.4*29.1
G Guardrail height	Inch	43.3
H Platform extension size	Inch	23.6
I Ground clearance (closed state)	Inch	2.36
J Ground clearance (lifting state)	Inch	0.59
K Wheelbase	Inch	40.6
product performance
Maximum number of workers (indoor/outdoor)		2 / –
load rating	LBS	500
Extended platform load rating	LBS	220
Driving speed (folding state)	km/h	0~4
Driving speed (lifting condition)	km/h	0~0.8
Minimum Turning radius (inside)	Inch	0
Minimum turning radius (outside)	Inch	61
Rise/fall time	s	25/25
Maximum allowable tilting Angle (front/left/right)	°	3°/1.5°
Maximum allowable wind speed (indoor/outdoor)	m/s	0/0
Maximum allowable lateral force (indoor/outdoor)	N	400/0
Gradeability	%	25
control		proportional control
actuator		Dual front wheels
braking		Double front wheels
Tyre specification/type	Inch	9*3.1
Product power
Lift/drive motor	kw	1.2/0.4*2
Battery voltage/capacity	V/Ah	25.6V/75AH
Charger input voltage	VAC	100-240
Charger output current	A	10
control voltage	VDC	24
Hydraulic tank capacity	L	3
total weight	lbs	2046
