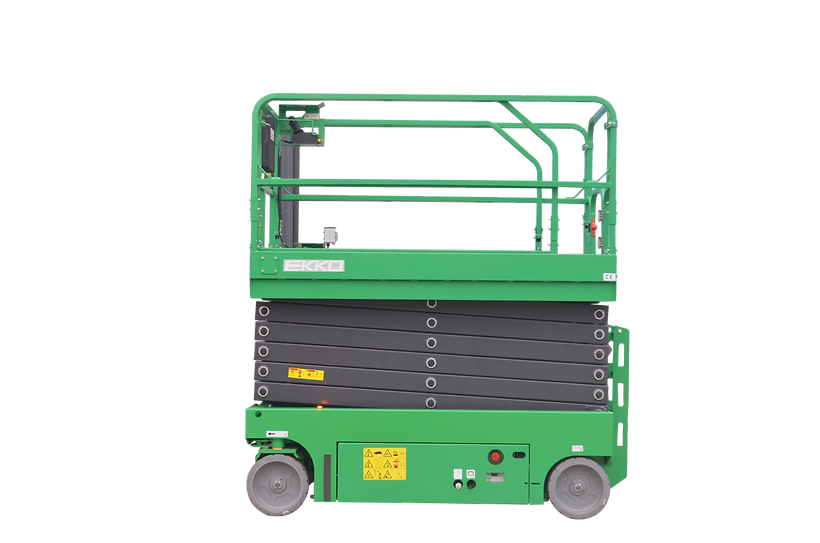

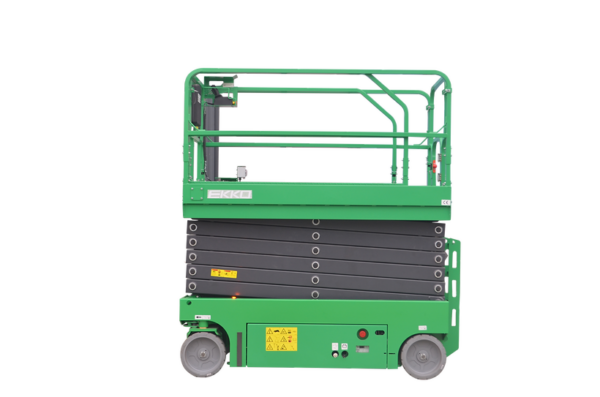

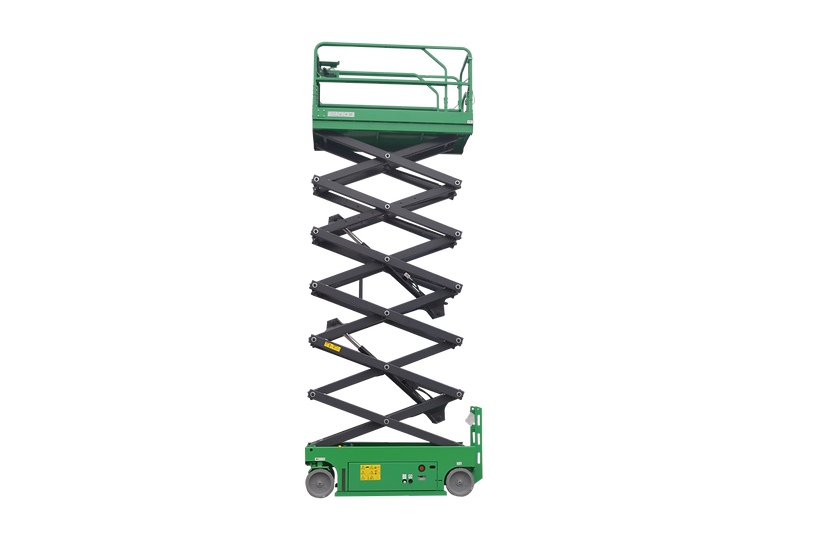

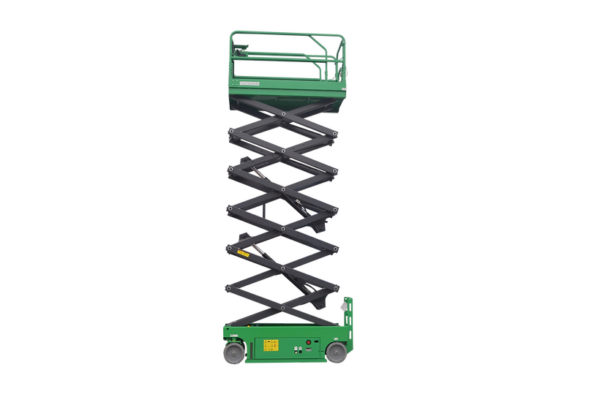

EKKO ES100E-Li Aerial Work Platform Lift Height 32.8' (394'')

Description

The EKKO ES100E-Li Scissor Aerial Work Platform is a 700-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

-Load Capacity 700 lb

-Raised Height 32.8′ (394″)

-Lowered Height 96.85”

-Size: Length 89″ x Width 45″

-Steel construction

-3 Years Limited Warranty

Product Info

	ES100E-LI
product dimensions
A1 Max working height	Inch	39′ (472”)
A2 Max platform height	Inch	32.8′ (394”)
B Length	Inch	94.5
C Width	Inch	45.27
D Overall height (guardrail not folded)	Inch	96″
Overall height (folding guardrail)	Inch	72″
Platform size (length EX width FX height G)	Inch	88.58×45.27
G Guardrail height	Inch	43.3
H Platform extension size	Inch	39.37
I Ground clearance (closed state)	Inch	3.74
J Ground clearance (lifting state)	Inch	0.78
K Wheelbase	Inch	72.83
product performance
Maximum number of workers (indoor/outdoor)		2 / 1
load rating	LBS	700
Extended platform load rating	LBS	265
Driving speed (folding state)	km/h	0-3.2
Driving speed (lifting condition)	km/h	0~0.8
Minimum Turning radius (inside)	Inch	0
Minimum turning radius (outside)	Inch	86.61
Rise/fall time	s	52/48
Maximum allowable tilting Angle (front/left/right)	°	3°/1.5°
Maximum allowable wind speed (indoor/outdoor)	m/s	0/12.5
Maximum allowable lateral force (indoor/outdoor)	N	400/200
Gradeability	%	30
control		proportional control
actuator		Double front wheels
braking		Double rear wheels
Tyre specification/type	Inch	15*5
Product power
Lift/drive motor	kw	3.3/0.7×2
Battery voltage/capacity	V/Ah	25.6V/230AH
Charger input voltage	VAC	25.6V
Charger output current	A	36A
control voltage	VDC	24
Hydraulic tank capacity	L	22
total weight	lbs	6304
