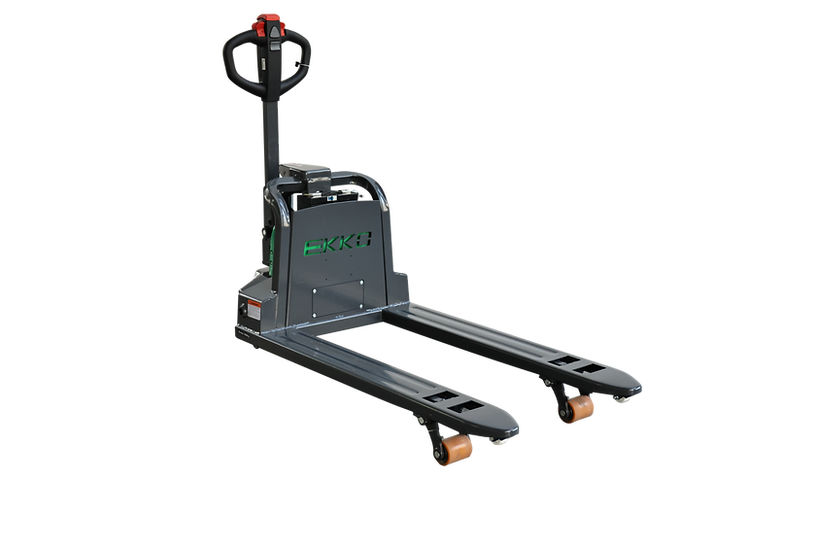

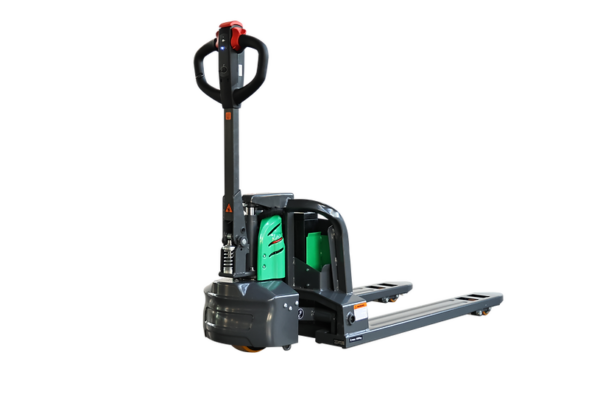

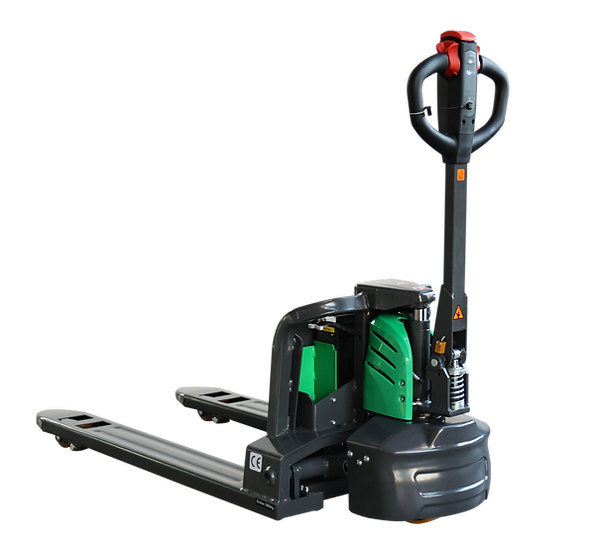

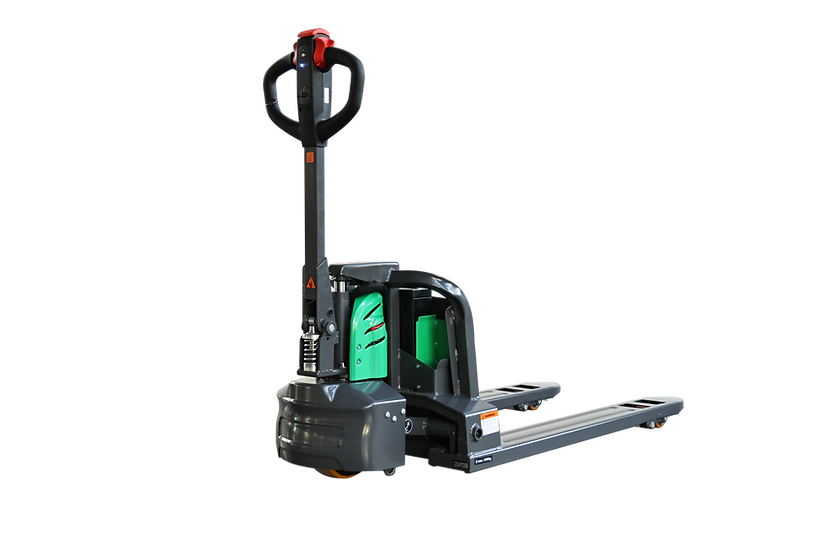

EKKO EPF15Li Full-Powered Lithium Pallet Jack 3300 lb Capacity

Description

The EKKO EPF15Li Full-Powered Lithium Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Lithium 24V Powered
Load Capacity 3300 lb
Fork Size 27×45
Raised Height 7.87″
Lowered Height 2.95″
Pinwheel Capability
Polyurethane Wheels

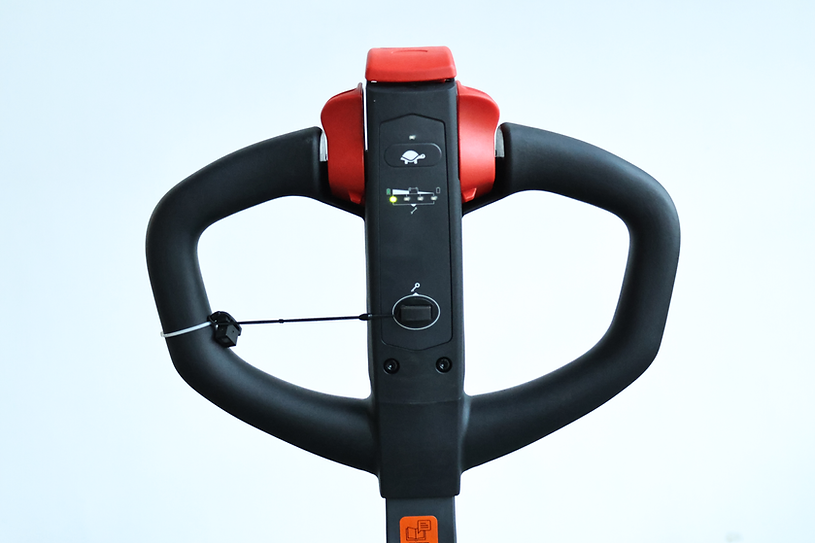

Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger Included

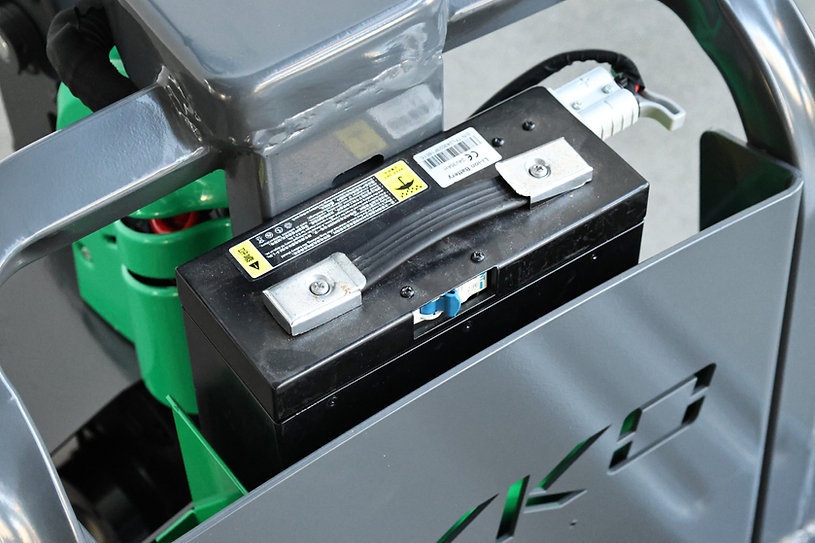

(1) Lithium Iron Battery LiFePO4 Included 24V/30Ah
3 Years Limited Warranty

Product Info

Mode		EPF15LI
Drive type		Electric
Manner of operation		Walkie
Load Capacity	Q (LBS)	3300
Load Centre	c (Inch)	23.6
Distance between fork backrest and front wheel	x (Inch)	39.92
Wheel Base	y (Inch)	51.69
Tire material		PU
Driving wheel size	Φ×w(Inch)	Φ8.27×2.76
Bearing wheel size	Φ×w(Inch)	Φ3.15×3.35
Qty of wheel，Front/Rear（x=driving wheel）		1x/2
Tread	b11 (Inch)	21.06
Lifting Height	h3 (Inch)	7.87
The height of handle in the operation position	h14 (Inch)	29.13/45.67
Lowered fork height	h13 (Inch)	2.95
Overall Length	l1 (Inch)	65.86
Body Length	l2 (Inch)	17.83
Overall Width	b1/ b2 (Inch)	26.97
Fork Size	s/e/l (Inch)	1.97/5.91/45
Fork Width	b5 (Inch)	26.97
Min.Ground clearance	m2 (Inch)	1.38
Aisle width for pallets 39.37*47.24 crossways	Ast (Inch)	73.78
Aisle width for pallets 31.5*47.24 lengthways	Ast (Inch)	75.75
Turing Radius	Wa (Inch)	57.8
Driving Speed，load/unload	(km/h)	4.2/4.5
Maximum gradeability load/unload	(%)	5/10
Brake Type		Electromagnetic brake
Drive Motor	(kW)	0.75
Lift Motor	(kW)	0.8
Lithium LiFePO4 Battery voltage rate capacity	(V/Ah)	24/30
Battery Weight（±5%）	LBS	17
Type of drive control		DC
Noise level	(dB(A))	≤70
Service Weight（with battery）	LBS	345
