EKKO EPC30A Center-Controlled Rider Pallet Jack 5000lbs. Capacity

Description

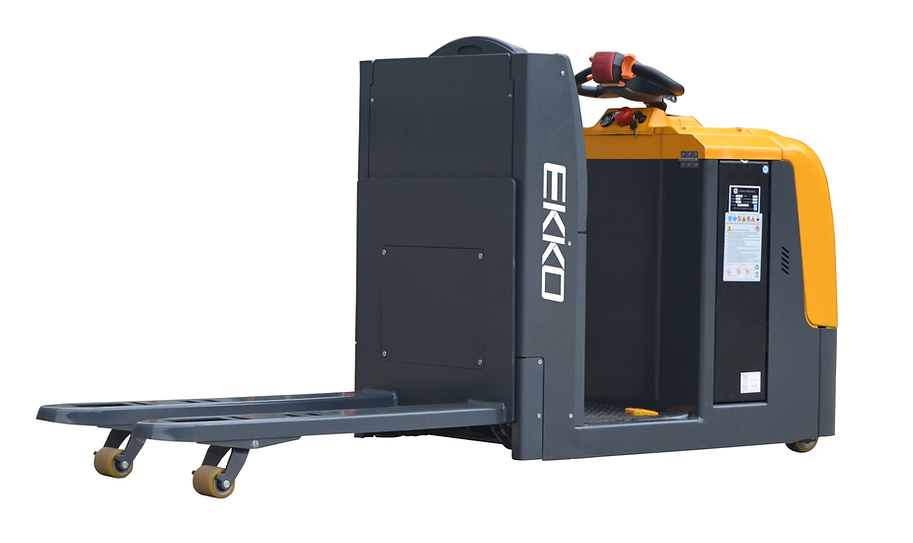

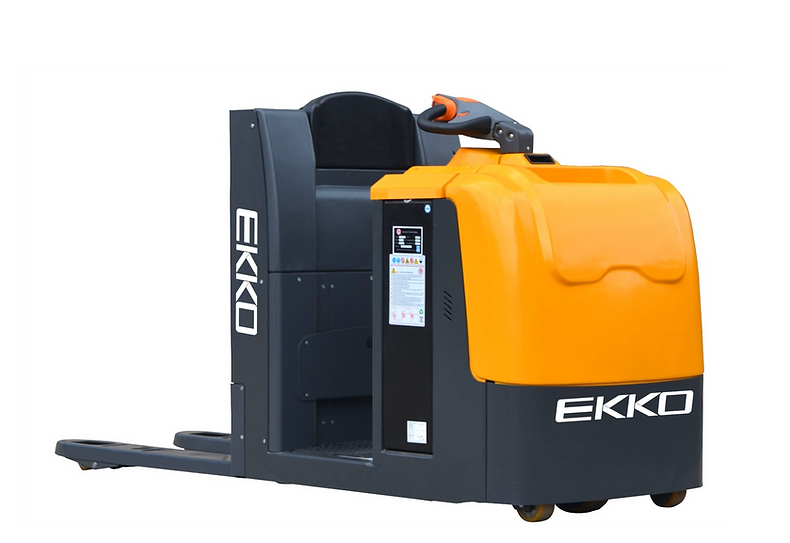

The EKKO EPC30A Center-Controlled Rider Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for long hauls, loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Load Capacity 5000lbs.
  • Fork Size 27×45
  • Raised Height 7.88″
  • Lowered Height 3.35″
  • Curtis Controller
  • ZF German AC Driver Motor
  • Polyurethane Wheels
  • Steel Entry Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery 24V/360Ah Included
  • 3 Years Limited Warranty

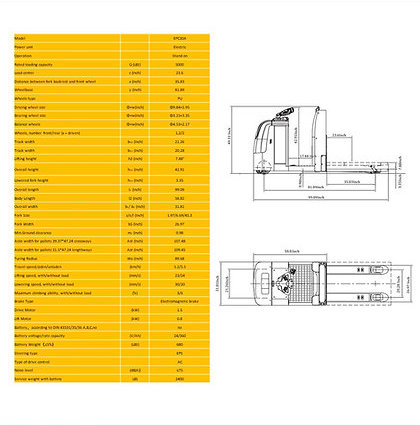

Product Info

ModelEPC30A
Power unitElectric
OperationStand on
Rated loading capacityQ (LBS)5000
Load centrec (Inch)23.6
Distance between fork backrest and front wheelx (Inch)35.83
Wheel basey (Inch)81.89
Wheels typePU
Driving wheel sizeΦ×w(Inch)Φ9.84×2.95
Bearing wheel sizeΦ×w(Inch)Φ3.15×3.35
Balance wheelsΦ×w(Inch)Φ4.53×2.17
Wheels, number front/rear (x = driven)1,2/2
Track widthb10 (Inch)21.26
Track widthb11 (Inch)20.28
Lifting heighth3 (Inch)7.88″
Overall heighth14 (Inch)42.91
Lowered fork heighth13 (Inch)3.35
Overall lengthl1 (Inch)99.09
Body Lengthl2 (Inch)58.82
Overall widthb1/ b2 (Inch)31.81
Fork Sizes/e/l (Inch)1.97/6.69/45.3
Fork Widthb5 (Inch)26.97
Min.Ground clearancem2 (Inch)0.98
Aisle width for pallets 39.37*47.24 crosswaysAst (Inch)107.48
Aisle width for pallets 31.5*47.24 lengthwaysAst (Inch)109.45
Turing RadiusWa (Inch)89.68
Travel speed,laden/unladen(km/h)5.2/5.5
Lifting speed, with/without load(mm/s)23/24
Lowering speed, with/without load(mm/s)30/20
Maximum climbing ability, with/without load(%)3/6
Brake TypeElectromagnetic brake
Drive Motor(kW)1.5
Lift Motor(kW)0.8
Battery,according to DIN 43531/35/36 A,B,C,nono
Battery voltage/rate capacity(V/Ah)24/360
Battery Weight(±5%)(LBS)680
Steering typeEPS
Type of drive controlAC
Noise level(dB(A))≤75
Service weight with batteryLBS2400
