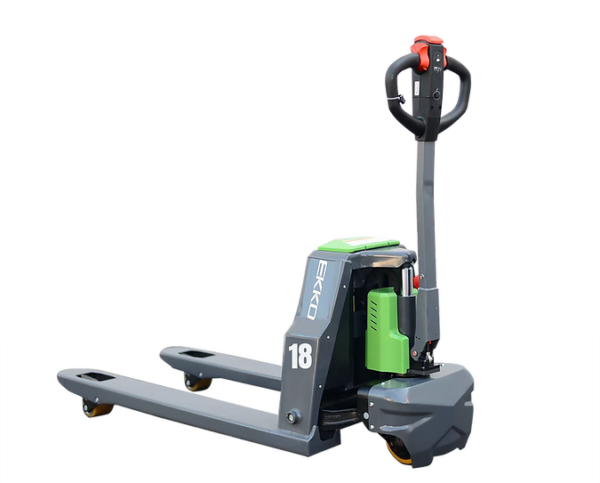

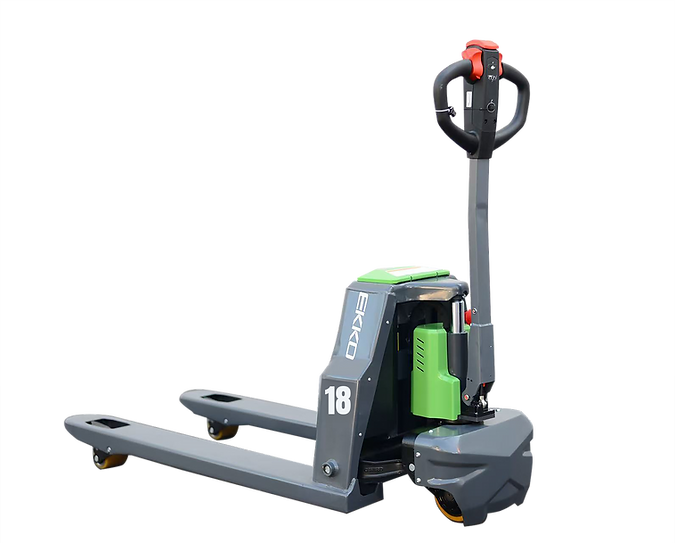

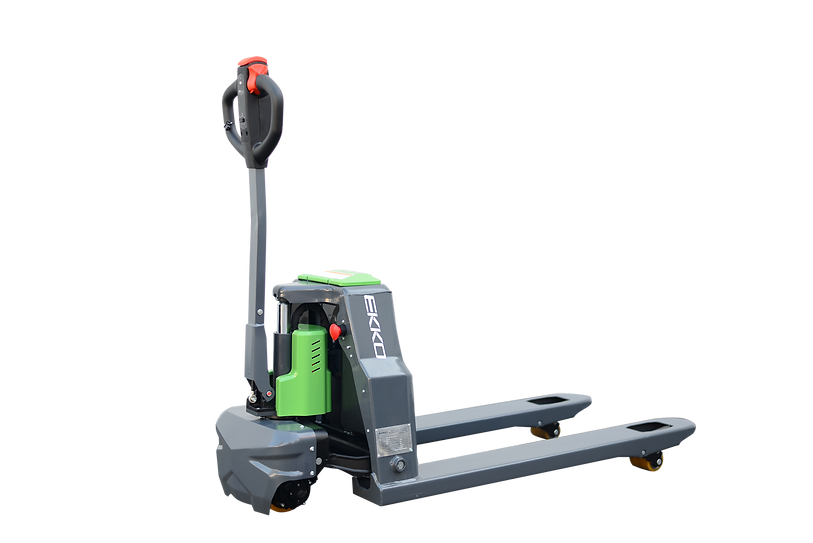

EKKO EPC18Li Full-Powered Lithium Pallet Jack 4000lbs. Capacity

Description

The EKKO EPC18Li Full-Powered Lithium Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for long hauls, loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Load Capacity 4000lbs.
  • Fork Size 27×45
  • Raised Height 7.68″
  • Lowered Height 3.35″
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery 24V/30Ah Included
  • 3 Years Limited Warranty

Product Info

ModelEPC18Li
Power unitLithium Battery
OperationControl
Rated loading capacityQ (LBS)4000
Load center distancec (Inch)24
Wheel basey (Inch)81.89
Wheels typePU
Lifting heighth3 (Inch)7.68″
Overall heighth14 (Inch)42.91
Lowered fork heighth13 (Inch)3.35
Overall lengthl1 (Inch)64.17
Overall widthb1/ b2 (Inch)31.81
Fork Sizes/e/l (Inch)2.24/6.3/45.28
Fork Widthb5 (Inch)26.97
Min.Ground clearancem2 (Inch)0.98
Aisle width for pallets 39.37*47.24 crosswaysAst (Inch)88.5
Aisle width for pallets 31.5*47.24 lengthwaysAst (Inch)85.2
Turning RadiusWa (Inch)58.82
Travel speed,laden/unladen(mph)2.49/2.8
Lifting speed, with/without load(in/s)0.59/0.76
Lowering speed, with/without load(in/s)6/10
Brake TypeElectromagnetic brake
Drive Motor(kW)0.85
Lift Motor(kW)0.7
Battery voltage/rate capacity(V/Ah)24/30
Battery Weight(±5%)(LBS)13.9
Type of drive controlDC
Service weight with batteryLBS260.2
