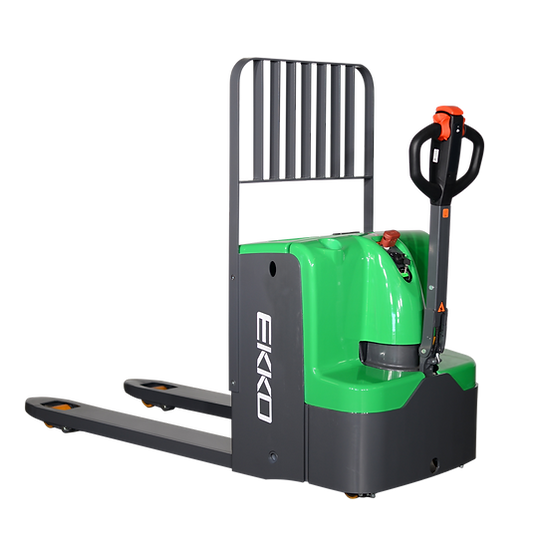

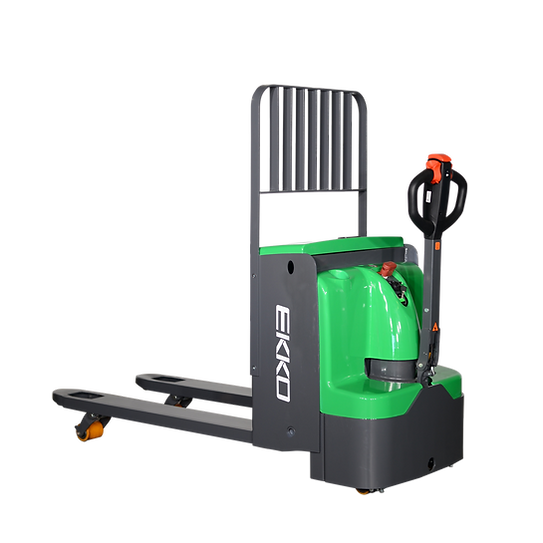

EKKO EP25E-Li Walkie Pallet Jack 5500lbs. Capacity

Description

The EKKO EP25E-Li Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.





  • Load Capacity 5500lbs.
  • Fork Size 27×48
  • Raised Height 7.9″
  • Lowered Height 3.3″
  • Curtis Controller
  • Polyurethane Wheels
  • Steel Entry Wheels

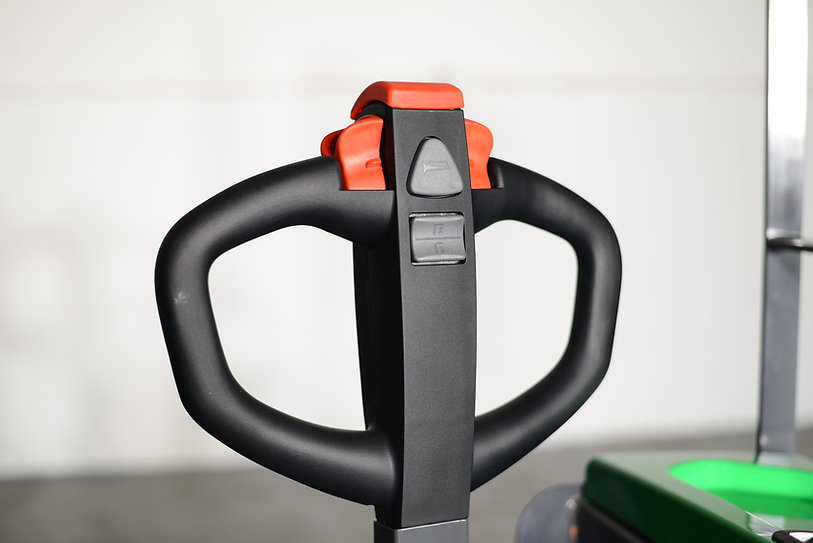

  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Lithium Battery Included

Product Info

Model EP25E-Li
Lift Electric
Drive Electric
Load capacity (lbs)5500
Load center (in)24
Wheel base (in)53
Lowered fork height (in)3.33
Lifting height (in)7.9
Overall length (in)71.2
Overall width (in)27.5
Fork sizes/e/l (in)2/6/48
Outside distance of fork (in)27
Turning radius(in)60
Lifting speed, laden/unladen(in/s)0.8/1.1
Lowering speed, laden/unladen(in/s)1.5/1.5
Max gradient performance  laden/unladen(%)8/15
Brake type electromagnetic
Drive motor(kW)1.3
Lift motor(kW)0.8
Charger(V/A)24/50A
Battery voltage/rated capacity(V/Ah)24/150 Lithium
Type of the drive motor AC Motor speed control
Noise level at operator sear(dB(A))68
Service weight

(with battery)

 (lbs)1010
