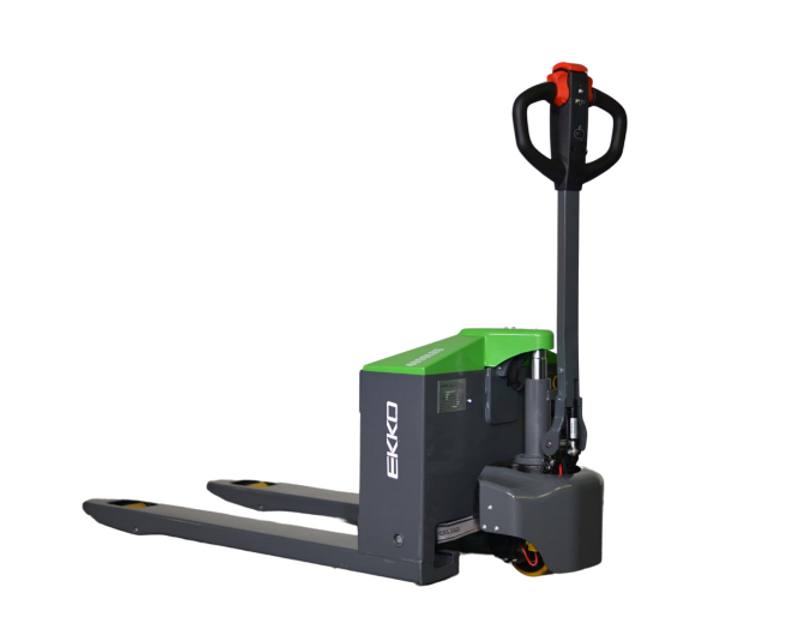

EKKO EP15JLIC Lithium Walkie Pallet Jack 3300 lb Capacity

Description

The EKKO EP15JLIC Lithium Walkie Pallet Jacks are designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Lithium 24V Powered
  • Load Capacity 3300 lb
  • Fork Size 2.2×45.2
  • Raised Height 7.48″
  • Lowered Height 2.95″
  • Pinwheel Capability
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

Product Info

ModelEP15JLIC
Drive typeElectric
Manner of operationWalkie
Load CapacityQ (LBS)3300
Load Centrec (Inch)23.6
Axle centre to fork facex (Inch)37
Wheel Basey (Inch)50.3
Tire materialPolyurethane
Driving wheel sizeΦ×w(Inch)Φ8.27×2.95
Bearing wheel sizeΦ×w(Inch)Φ2.91×3.66
Qty of wheel,Front/Rear(x=driving wheel)  1x/2
Treadb11 (Inch)21.06
Lifting Heighth3 (Inch)7.48
The height of handle in the operation positionh14 (Inch)48.2
Lowered fork heighth13 (Inch)2.95
Overall Lengthl1 (Inch)64
Body Lengthl2 (Inch)16.53
Overall Widthb1/ b2 (Inch)27
Fork Sizes/e/l (Inch)2.24/6.3/45.28
Fork Widthb5 (Inch)27
Min.Ground clearancem2 (Inch)1.06
Aisle width for pallets 39.37*47.24 crosswaysAst (Inch)88.9
Aisle width for pallets 31.5*47.24 lengthwaysAst (Inch)83.9
Turing RadiusWa (Inch)57.5
Driving Speed,load/unload(km/h)2.6/2.8
Maximum gradeability load/unload(in/s)0.24/0.39
Brake TypeElectromagnetic brake
Drive Motor(kW)0.75
Lift Motor(kW)0.8
Lithium LiFePO4 Battery voltage   rate capacity(V/Ah)24/30
Battery Weight(±5%)LBS21.1
Type of drive controlDC
Noise level(dB(A))≤70
Service Weight(with battery)LBS328
