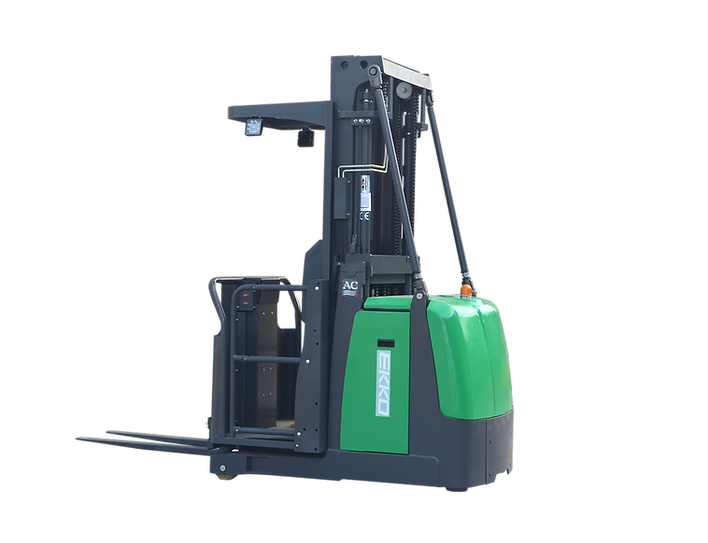

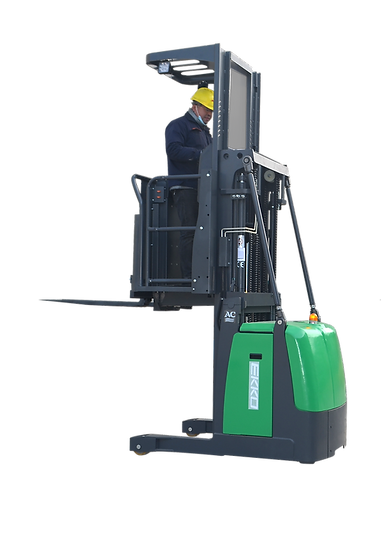

EKKO EOP70-Li Lithium Electric Order Picker 2,200 lbs Capacity, 196" Lift Height
EKKO EOP70-Li Lithium Electric Order Picker 2,200 lbs Capacity, 196" Lift Height

EKKO EOP70-Li Lithium Electric Order Picker 2,200 lbs Capacity, 196″ Lift Height

Category:

Description

The EKKO EOP70-Li Electric Mid-Level Order Picker is designed with one sole purpose: to efficiently pick your orders from racking and storage facilities, manufacturing floors, and warehouses.



Constructed with high-quality steel and durable components, the EOP70-Li is built to withstand various terrains, heavy usage, impacts, and directional changes, ensuring dependable performance for all applications. This order picker delivers reliable and consistent results, making it perfect for industrial environments.



Features:

  • Load Capacity: 2,200 lbs
  • Raised Height: 196″ (16.33 ft)
  • Adjustable Forks
  • Auxiliary Fork
  • Triple Mast
  • Electronic Power Steering (EPS)
  • German AC Drive Motor
  • Polyurethane Tires
  • Ergonomic Handle and Controls
  • Steel Construction with Robotic Welding
  • Curtis® Controller
  • 24V/350Ah Battery Lithium
  • 24V/50A Lithium Charger

Product Info

Model EOP70-LI
Drive Type Lithium Order Picker
Type of Operation Stand On
Loading Capacity 2,200 lbs
Load Center Distance 19.68 in
Wheelbase 53.46 in
Service Weight with

Battery

 6,860 lbs
Wheels Type Polyurethane
Driving Wheel Size Φ9.84×5
Bearing Wheel Size Φ5.9×3.23
Wheels (Front/Rear) 1, / 2
Track Width 37.8 in
Lowered Mast Height 93.11 in
Lifting Height 196 in
Extended Mast Height 285 in
Height of Overhead

Guard (Cabin)

 89.48 in
Height of Seat/Stand-on Platform 10.67 in
Additional Lift Height 30.71 in
Total Lift Height 227 in
Platform Lifting Height 206.87 in
Lowered Fork Height 1.97 in
Picking Height 258.01 in
Overall Length 111.41 in
Body Length 69.29 in
Overall Width 39.37 / 145.28 in
Fork Size 1.37 / 3.93 / 42.13 in
Width of Fork

Fixing Frame

 35.83 in
Outside Fork Width 34.33 in
Min. Ground Clearance 1.97 in
Aisle Width for Pallets

(Crossways)

 122.24 in
Aisle Width for Pallets

(Lengthways)

 126.77 in
Turning Radius 61.81 in
Travel Speed

(Laden/Unladen)

 8 km/h
Climbing Ability

(With/Without Load)

 3 / 6 %
Brake Type Electromagnetic Brake
Drive Motor 3 kW
Lift Motor 6 kW
Battery Voltage/Rate

Capacity

 24V / 350 Ah Lithium
Type of Drive Control AC
Noise Level ≤75 dB(A)
Battery 24V/ 350Ah Lithium
