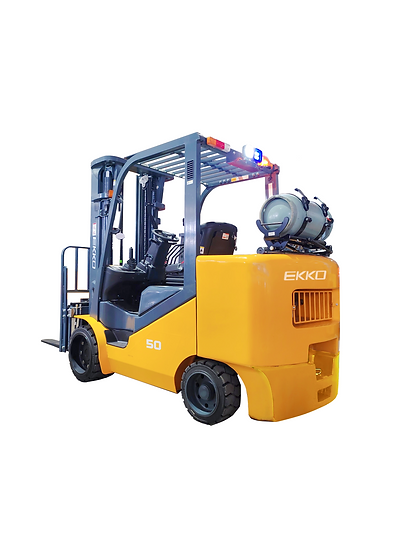

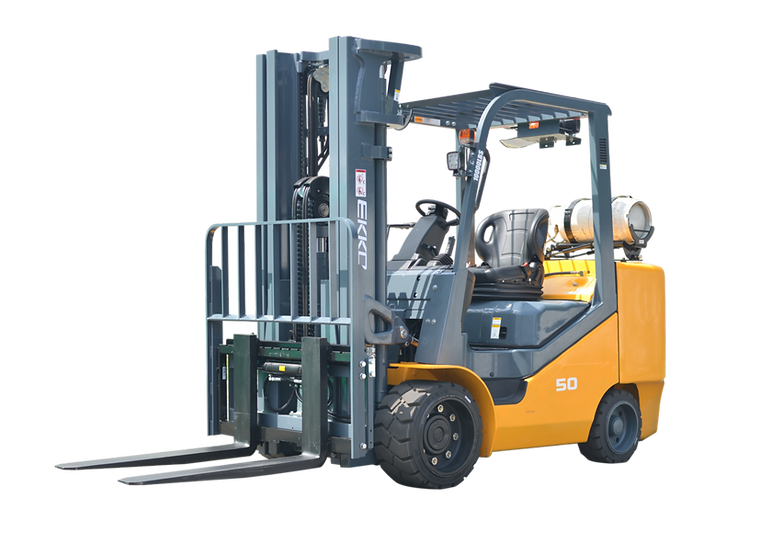

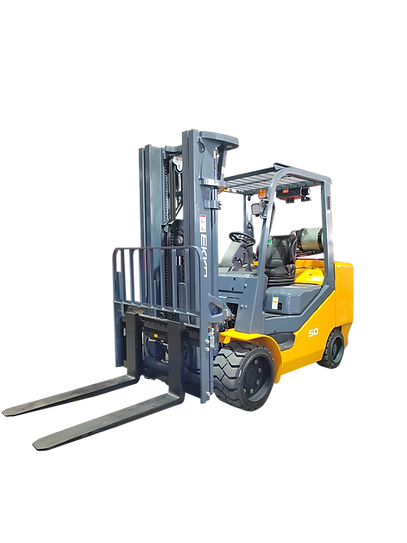

EKKO EK50LP Forklift (LPG) 10,000 lbs cap, 185″ Lift Height

Description

The EKKO EK50LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.



• Multifunction instrument panel – motoring for Safety and efficient operation
• Operator compartment- nonslip entrance step, wider access & leg room.
• Adjustable steering column limiting operator arm and shoulder fatigue.
• Excellent Operator visibility.
• Integral Heavy-Duty Chassis- ensuring driver protection
• Steer axle pivots to 80 degrees for tighter turning radius.

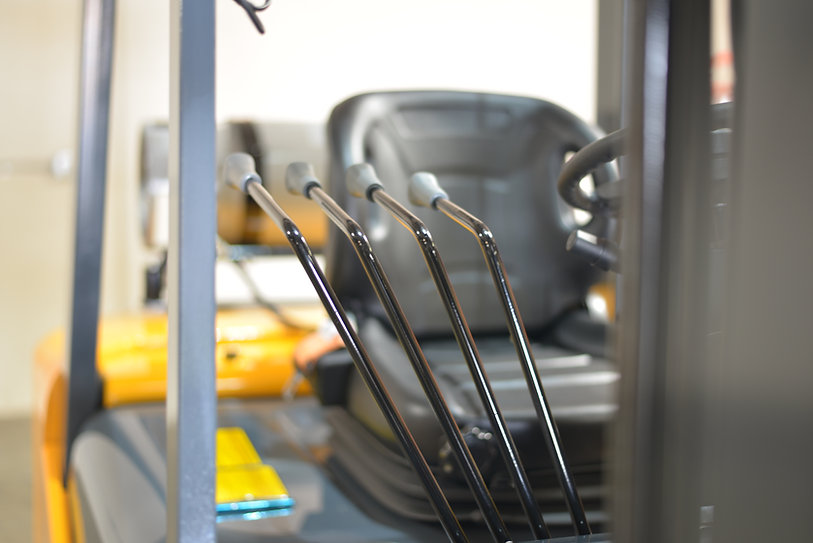

• Hydraulic controls

Product Info

Model   EK50LP
Drive type   LPG
Type of operation   Propane
Load Capacity LBS 10,000
Load Center in 24
Lift height in 185
Wheelbase in 61.8
Service Weight LBS 16,250
Tire material   Pattern Cush. Tire
Traction Pin Height in 11.2
Service Brake   Hydraulic Foot Pedal
Overall width in 55.9
Overall length with forks in 157
Overall length without forks in 109
Min ground clearance (at the mast) in 4.3
Max traveling speed (loaded/unloaded) mph 10.5/11.2
Mast Overall height in 91.9
Free lifting height in 44.3
Backrest height (from the surface of the forks) in 47.6
Fork Size in 48×5.9×1.97
Parking Brake   Mechanicl Hand Lever

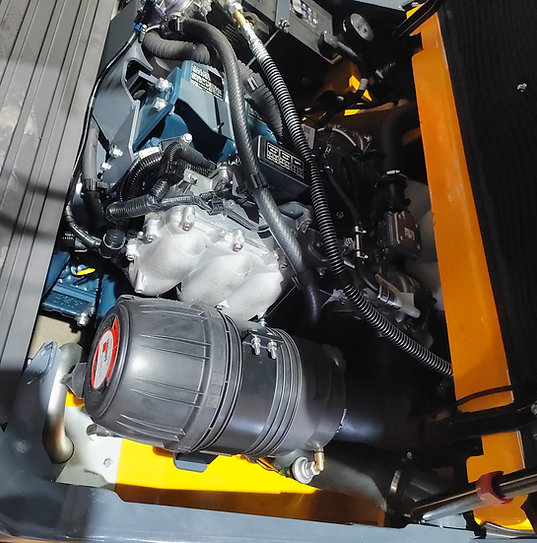

Engine Mode   Kubota WG3800
Engine rated power HP/rpm 63.2
