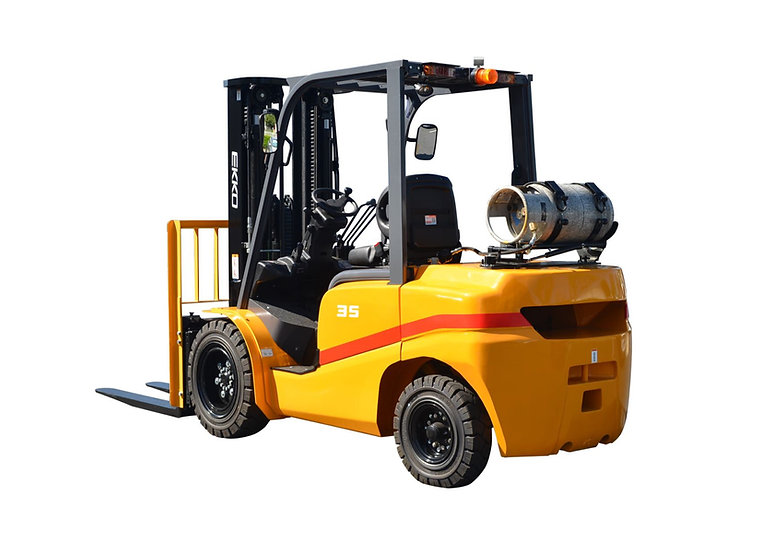

EKKO EK35TLP Forklift with solid pneumatic tires 7000 lbs., cap.

Description

The EKKO EK35TLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota or PSI 2.4L engine and competitive pricing.



  •  The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard’s front leg
  • Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
  • Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
  • Lowering damping device inside the lifting system reduces mast’s shock and vibration, avoiding noise caused by goods falling to the ground.
  • Small turning radius makes steering flexible and easy.
  • with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
  • The engine satisfies the CARB 4 regulation
  • Cascade® Side Shift
  • Shimadzu® 4-Way Valve (Pre-Plumbed)

Product Info

Model   EK35TLP
Drive type   LPG
Type of operation   Propane
Load Capacity LBS 7000
Load Center in 24
Lift height in 185
Wheelbase in 66.9
Service Weight LBS 10,967
Tire material   Solid Pneumatic Tire
Wheel   28×9-15-12PR/6.50-10-10PR
Service Brake   Hydraulic Floor Pedal
Overall width in 50.5
Overall length with forks in 153
Overall length without forks in 108
Min ground clearance (at the mast) in 4.7
Max traveling speed (loaded/unloaded) mph 11/12.1
Mast Overall height in 86.2
Free lifting height in 37.9
Overal Height w/ forks lifted in 234
Fork Size in 42×4.9×1.9
Battery V/ Ah 12/60
Engine Mode   PSI 2.4
Engine rated power HP/rpm LPG: 63/2700
