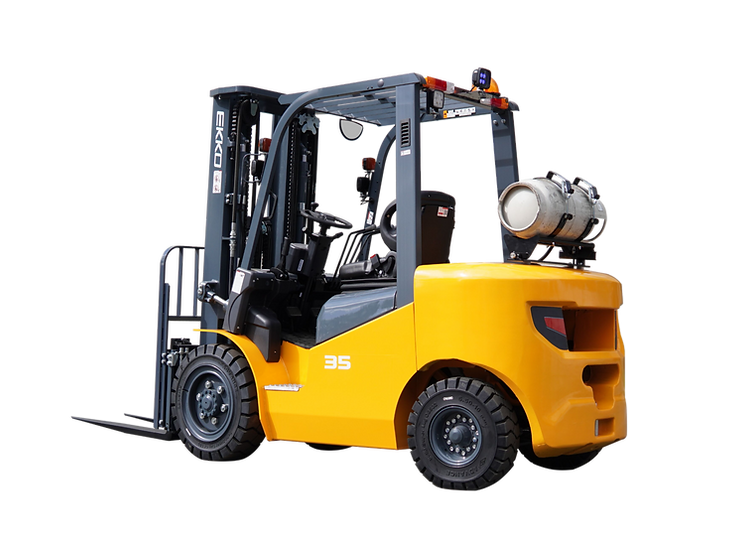

EKKO EK35LP Pneumatic Forklift (LPG) 7000 lbs cap, 189″ Lift Height

Description

The EKKO EK35LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.



• Multifunction instrument panel – motoring for Safety and efficient operation
• Operator compartment- nonslip entrance step, wider access & leg room.
• Adjustable steering column limiting operator arm and shoulder fatigue.
• Excellent Operator visibility.
• Integral Heavy-Duty Chassis- ensuring driver protection

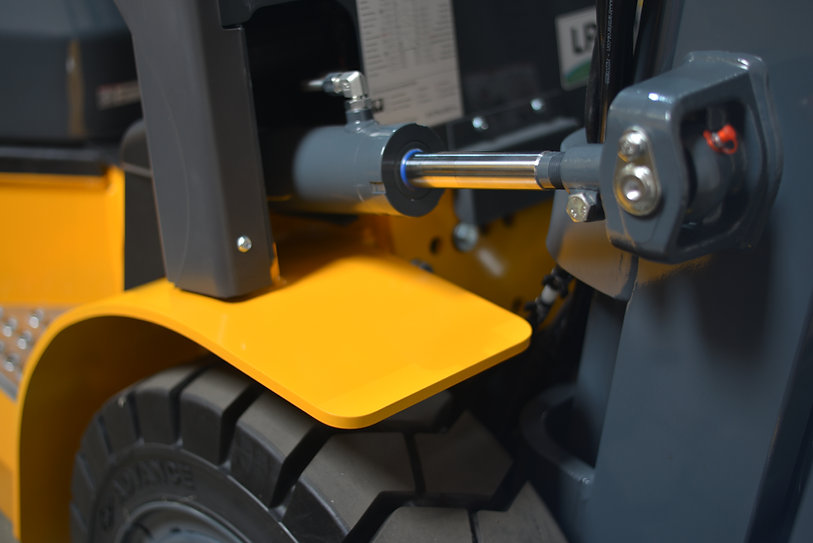

• Steer axle pivots to 80 degrees for tighter turning radius.

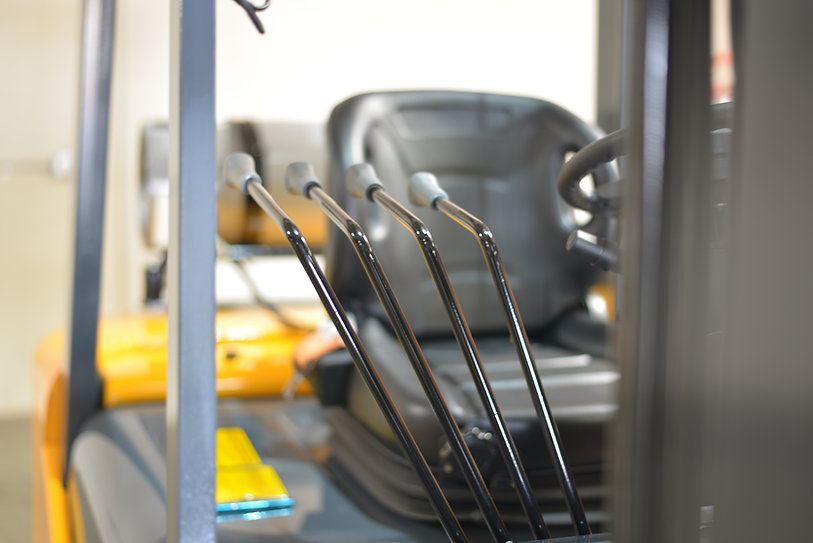

• Hydraulic controls

Product Info

Model   EK35LP
Drive type   LPG
Type of operation   Propane
Load Capacity LBS 7,000
Load Center in 24
Lift height in 189
Wheelbase in 68.9
Service Weight LBS 10,605
Tire material   Solid Pneumatic Tire
Traction Pin Height in 12.2
Service Brake   Hydraulic Foot Pedal
Overall width in 48.2
Overall length with forks in 150.4
Overall length without forks in 108.3
Min ground clearance (at the mast) in 5.3
Traveling speed mph 11.875
Mast Overall height in 89.4
Free lifting height in 42.9
Backrest height (from the surface of the forks) in 46.3
Fork Size in 42.1X4.9X1.97
Parking Brake   Mechanical Hand Brake

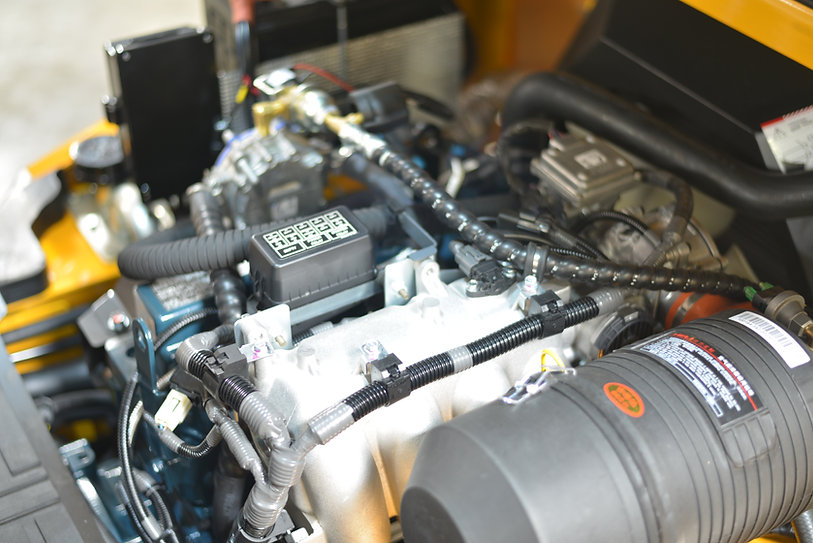

Engine Mode   Kubota WG2503
Engine rated power HP/rpm 60.1/2400
