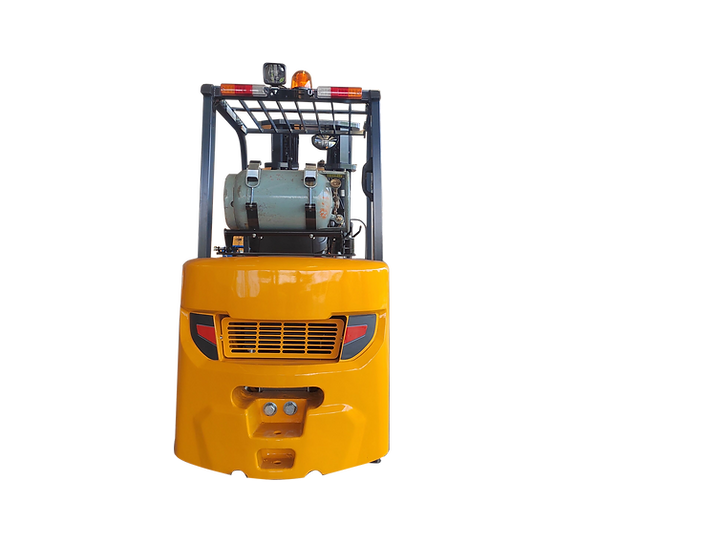

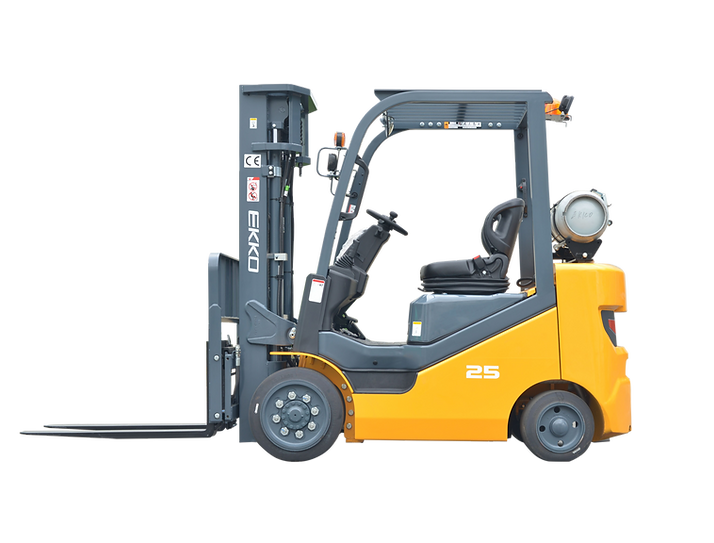

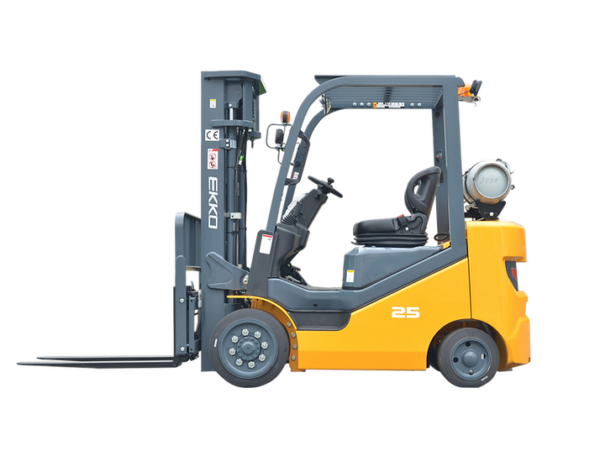

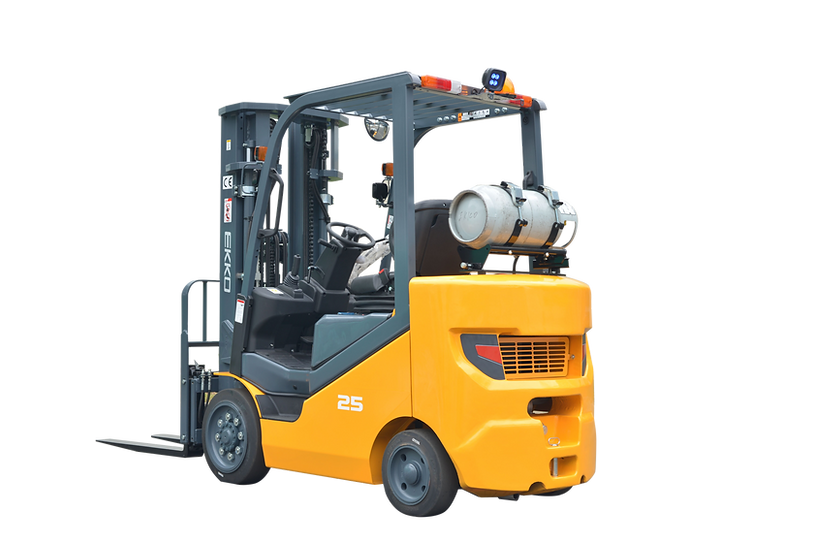

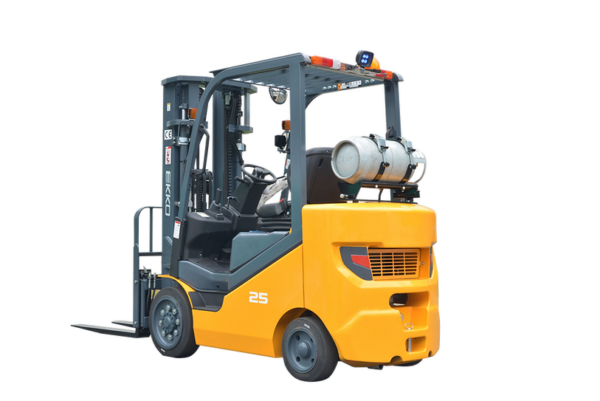

EKKO EK25CLP Forklift with Cushion (LPG) 5000 lbs

Description

The EKKO EK25CLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI engine and competitive pricing.



  •  The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard’s front leg
  • Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
  • Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
  • Lowering damping device inside the lifting system reduces mast’s shock and vibration, avoiding noise caused by goods falling to the ground.
  • Small turning radius makes steering flexible and easy.
  • with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
  • The engine satisfies the CARB 4 regulation

Product Info

Model EK25CLP
Drive type LPG
Type of operation Propane
Load CapacityLBS5000
Load Centerin24
Lift heightin189
Wheelbasein58
Service WeightLBS9370

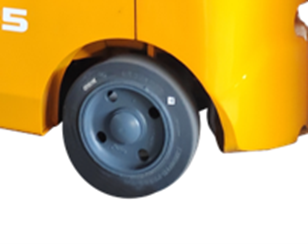

Tire material Cushion Tire
Wheel size(Front / Rear)in21×7-15/16×6-10.5
Service Brake Hydraulic Floor Pedal
Overall widthin42
Overall length with forksin136.8
Overall length without forksin94.5
Min ground clearance (at the mast)in3.5
Max traveling speed (loaded/unloaded)mph10.8/10.8
Mast Overall heightin85
Free lifting heightin44
Backrest height (from the surface of the forks)in40
Fork Sizein42×4.8×1.57
BatteryV/ Ah12/60
Engine Mode Mitsubishi 4G64 (PSI Engine)
Engine rated powerHP/rpmLPG: 63/2700
