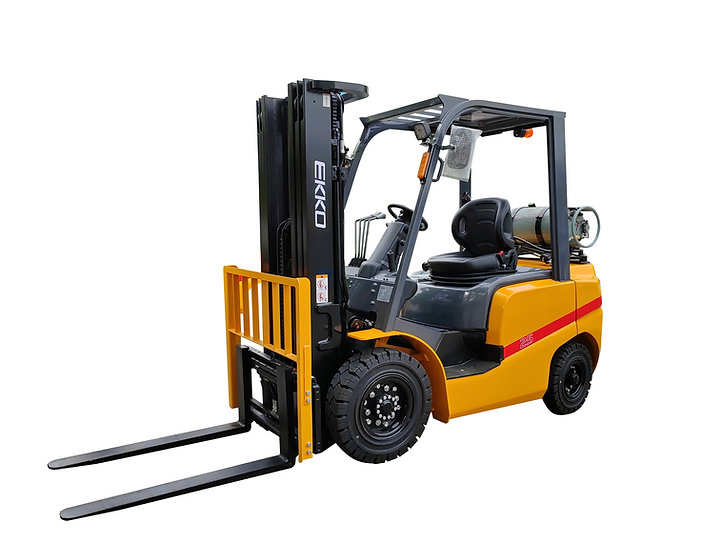

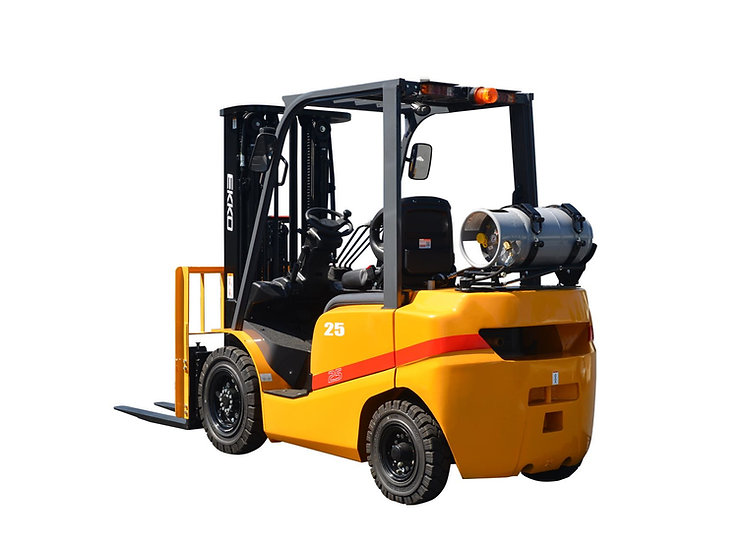

EKKO EK20TLP Forklift with solid pneumatic tires 4000 lbs., cap.

Description

The EKKO EK20TLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.

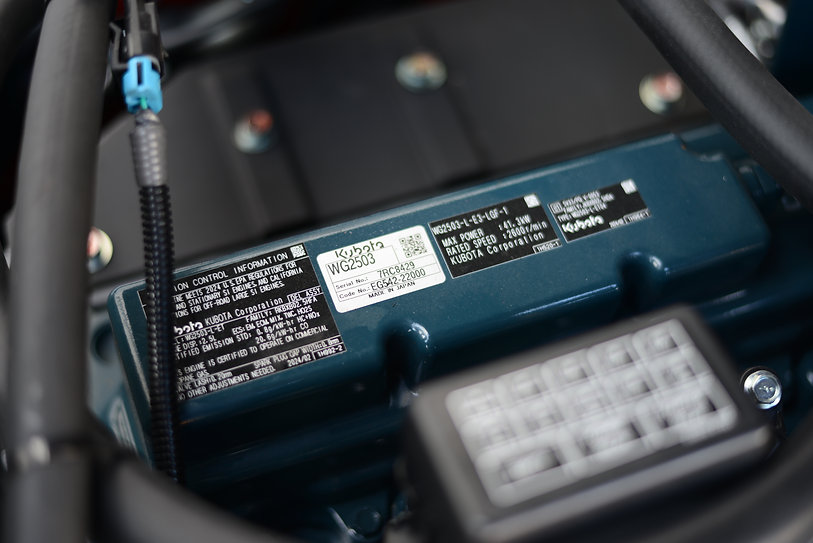

This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota or PSI 2.4L engine and competitive pricing.



  •  The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard’s front leg
  • Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
  • Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
  • Lowering damping device inside the lifting system reduces mast’s shock and vibration, avoiding noise caused by goods falling to the ground.
  • Small turning radius makes steering flexible and easy.
  • with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
  • The engine satisfies the CARB 4 regulation
  • Cascade® Side Shift
  • Shimadzu® 4-Way Valve (Pre-Plumbed)

Product Info

Model   EK20TLP
Drive type   LPG
Type of operation   Propane
Load Capacity LBS 4000
Load Center in 24
Lift height in 185
Wheelbase in 62.9
Service Weight LBS 7716
Tire material   Solid Pneumatic Tire
Wheel   7.00-12-12PR/6.00-9-10PR
Service Brake   Hydraulic Floor Pedal
Overall width in 45.2
Overall length with forks in 141.8
Overall length without forks in 96.8
Min ground clearance (at the mast) in 4.3
Max traveling speed (loaded/unloaded) mph 10.6/11.8
Mast Overall height in 83
Free lifting height in 43.7
Overal Height w/ forks lifted in 225
Fork Size in 42.1×4.8×1.5
Battery V/ Ah 12/60
Engine Mode   PSI 2.4
Engine rated power HP/rpm LPG: 63/2700
