EKKO EK20GS

Category:

Description

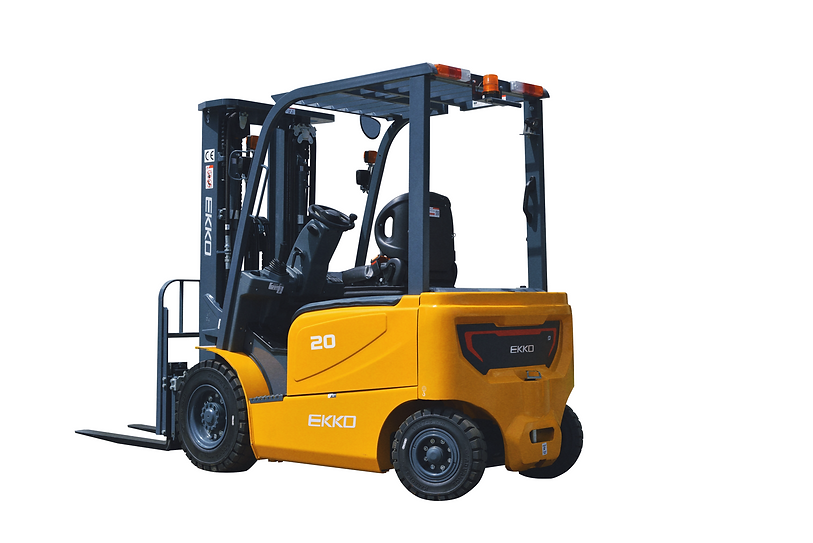

The EKKO EK20GS 4 Wheel Electric Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Load Capacity 4500 lb
  • Raised Height 189″ (15.75ft)
  • Side Shifting Forks
  • Free Lift 47.48”
  • Fork Length 42“
  • ZAPI Controller
  • Battery 48/600 AH Lead acid
  • Solid Pneumatic Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • 3-Phase 480V Chager (optional 220V)
  • 3 Year Limited Warranty

Product Info

Model   EK20GS
Drive Type   Electric Forklift
Type of Operation   Electric
Load Capacity LBS 4,500
Load Center Distance in 24
Lift Height in 189
Wheelbase in 65.4
Tilt DEG 6/6
Tire Material   Solid Pneumatic Tire
Driving Mode   Seated
Service Brake   Hydraulic Foot Pedal
Overall Width in 46.45
Overall Length with Forks in 133
Overall Length without Forks in 96
Min Outisde Turning Radius in 85
Traveling Speed (laden/unladen) mph 9/9.3
Ground Clearance (at mast) in 3.95
Lowered Mast Height in 79
Free Lift in 47.48
Service Weight LBS 9,232
Side Shift   3-way valve
Engine Mode   Zapi Controller
