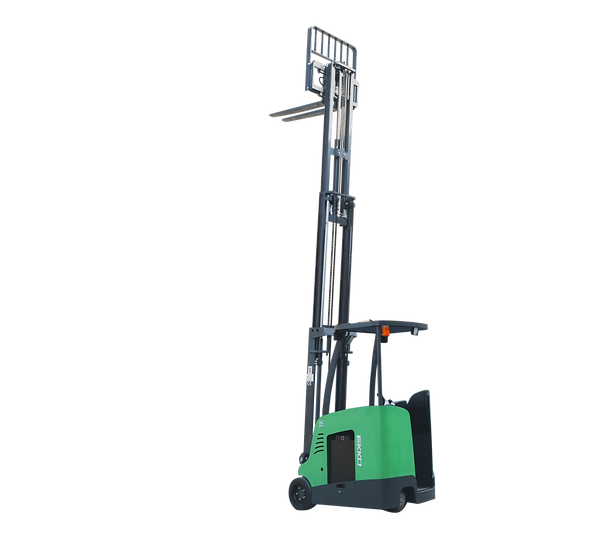

EKKO EK18RF-Li Stand-up Rider Forklift

Description

The EKKO EK18RF-Li Stand-up Rider Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Load Capacity 4000 lb
  • Raised Height 216″ (18ft)
  • Side Shift
  • Adjustable Forks 9.4-35.6″
  • Fork Length 45.3“
  • Hydraulic Steering
  • Curtis Instrument Controller
  • German AC Drive Motor
  • Battery 48V/350Ah Lithium
  • Solid Cushion Load Tires
  • Polyeurathane Drive Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 440V three phase
  • 3 Year Limited Warranty

Product Info

Model EK18RF-Li
Power unit Electric
Operation Type Rider
Loading capacityQ (LBS)4000

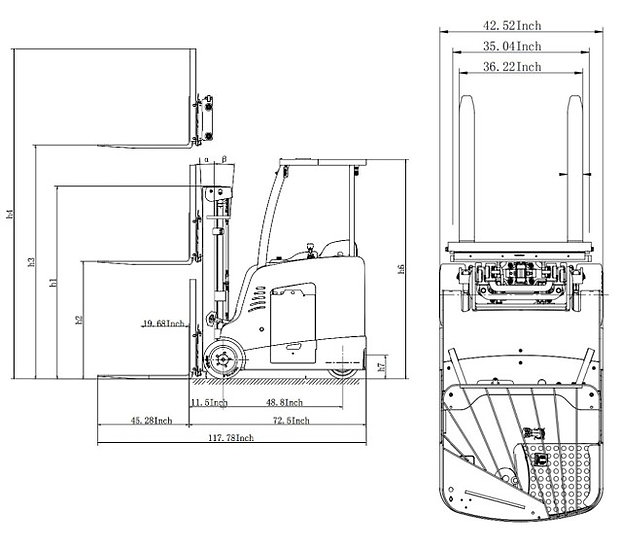

Load centerc (Inch)24
Axle centre to fork facex (Inch)11.5
Wheelbasey (Inch)48.8
Service weight with batteryLBS7940
Wheels type Solid wheel
Driving wheel sizeΦ×w(Inch)16×7-10.5(15.98*7.01*10.51)
Bearing wheel sizeΦ×w(Inch)13.5×5.2
Wheels, number front/rear 1×/2
Track widthb10 (Inch)35.04
Mast/fork carriage tilt, fwd/bwda/b (°)3/5
Lowered mast heighth1 (Inch)91.77
Free lift heighth2 (Inch)61.34
Lift heighth3 (Inch)216.54
Extended mast heighth4 (Inch)248.43
Height of overhead guard (cabin)h6 (Inch)90.08
Height of seat/stand-on platformh7 (Inch)9.06
Overall lengthl1 (Inch)117.78
Length to fork facel2 (Inch)72.52
Overall widthb1/ b2 (mm)42.52/42.13
Fork dimensionss/e/l (Inch)1.58/4.72/45.28
Width of forksb3 (Inch)36.22
Ground clearance under mastm1 (Inch)2.95
Min.Ground clearancem2 (Inch)3.86
Aisle Width RequirmentAst (FT)10.5
Min.Turning radiusWa (Inch)58.5
Travel speed,laden/unladen(km/h)12/13
Lifting speed, with/without load(mm/s)250/400
Lowering speed, with/without(mm/s)240/258
Climbing ability, with/without(%)6/10
Service brake Hydraulic
Drive motor, 60-minute rating(kW)6
Lift motor rating at S3 15%(kW)7.7
Battery according to DIN 43531/35/36 A,B,C,no no
Battery voltage/rated capacity(V/Ah)48V/350Ah Lithium
Power consumption VDI(mm)38*18.1*29.53
Type of drive control AC
Noise level at operator‘s ear(dB(A))≤70
steering type Hydraulic steering
