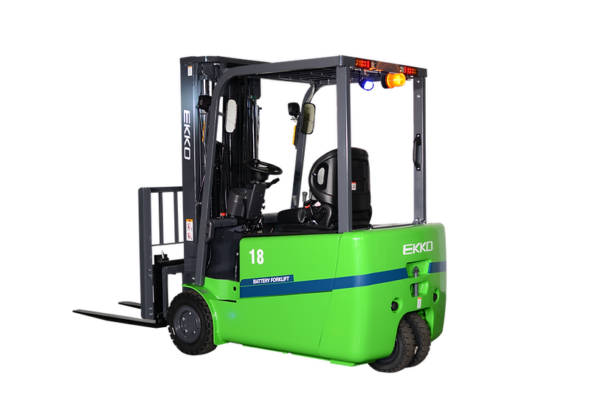

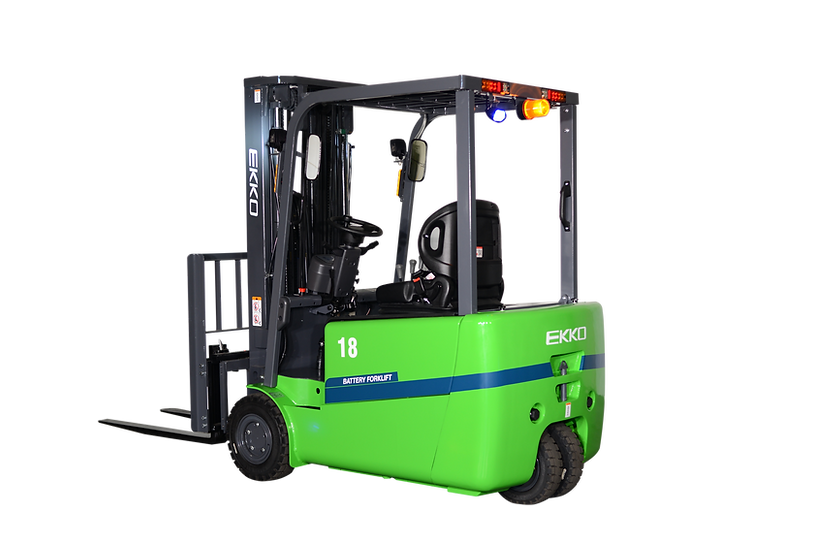

EKKO EK18AT-212Li 3-Wheel Lithium Forklift, 4,000 lbs Capacity, 212″ Lift Height

Category:

Description

The EKKO EK18AT-212Li 3-Wheel Lithium Forklift is built to meet all your material handling needs. Perfect for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouses, this forklift ensures reliable performance in any environment. Equipped with dual motors, this unit offers enhanced power, stability, and handling, making it ideal for demanding tasks.



Constructed with high-quality steel and durable components, the EK18AT-212Li features robust drives designed to withstand various terrains, heavy usage, impacts, and directional changes, ensuring dependable performance in all applications.



Features:

  • Load Capacity: 4,000 lbs
  • Raised Height: 185″ (15.4′)
  • Free Lift: 43.7″
  • Adjustable Forks
  • Hydraulic Steering
  • Solid Pneumatic Tires
  • Ergonomic Handle and Controls
  • Steel Construction with Robotic Welding
  • 48V/202Ah Lithium Battery (Included)
  • 3-Phase 480V Charger (Optional 220V & 110V)
  • InMotion® Controller
  • Cascade® Side Shift
  • Shimadzu® 4-Way Valve (Pre-Plumbed)
  • 3 Year Limited Warranty

Product Info

Model EK18AT-212Li
Drive Type Lithium Forklift
Type of Operation Rider
Load Capacity 4,000 lbs
Lift Height 212 in
Load Center Distance 24 in
Wheelbase 53.5 in
Service Weight with Battery 7,341 lbs
Tire Material Solid Pneumatic
Tire Size Front 200/50-10
Tire Size Rear 140×55-9
Wheels 2×/2
Tread, Front 35.8 in
Tread, Back 7.1 in
Lowered Mast Height 83.1 in
Free Lift Height 43.7 in
Height of Overhead

Guard (Cabin)

77.6 in
Overall Length 116.9 in
Overall Width 41.5 in
Ground Clearance Under Mast 4.3 in
Min. Ground Clearance 3.7 in
Min. Turning Radius 61 in
Travel Speed

(Laden/Unladen)

10/10 mph
Lifting Speed

(With/Without Load)

13.8 / 20.5 in/s
Climbing Ability

(With Load)

20%
Service Brake Hydraulic
Drive Motor 4.75 kW
Lift Motor 10 kW
Tilt (Forward/Backward) 3° / 6°
Side Shift Cascade®
Engine Mode InMotion® Controller
Charger 48V/100A
Battery 48V/202 Ah Lithium
