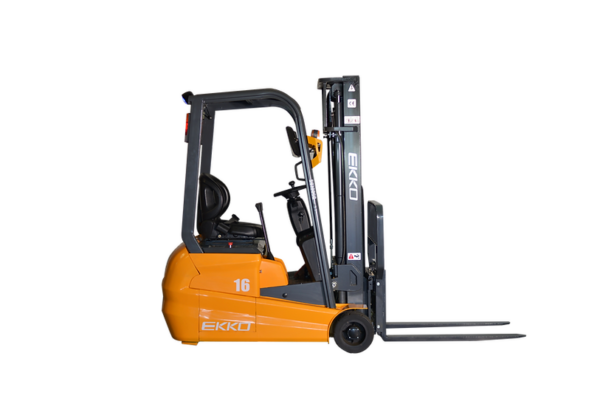

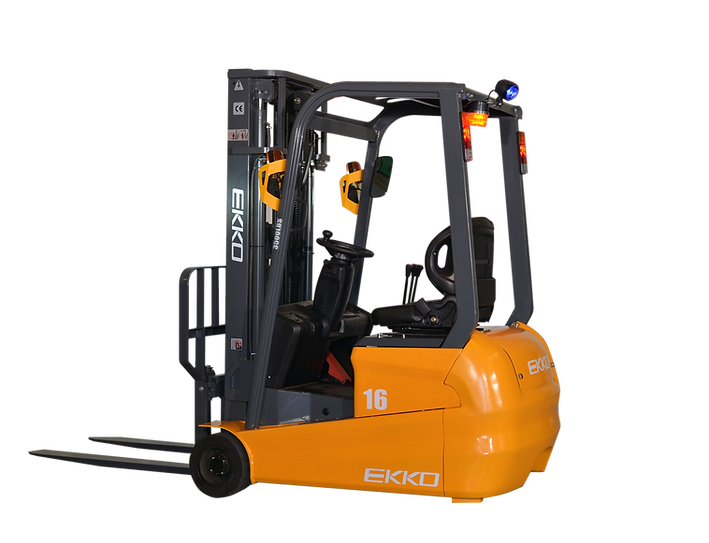

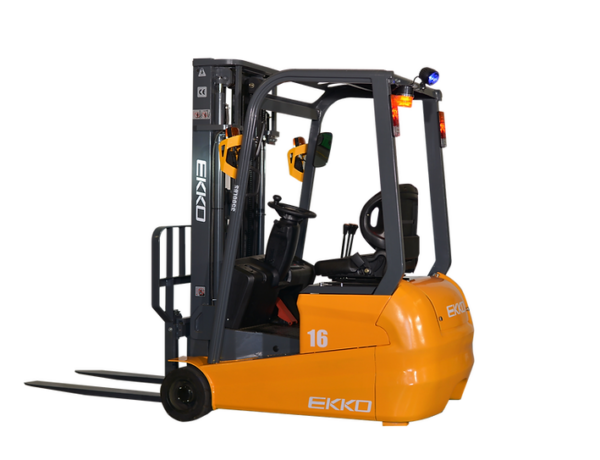

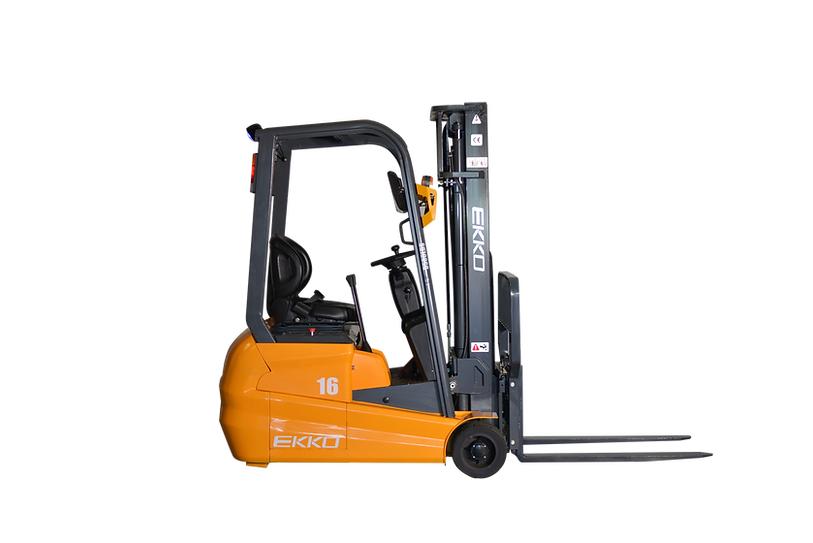

EKKO EK16A-138 3-Wheel Forklift 3500lbs., 138″Lift

Description

The EKKO EK16A-138 3 Wheel Electric Forklift is designed for use for small aisles, limited spaces and budget. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance. (Recommended for Indoor use on flat surfaces)



  • Load Capacity 3500 lb
  • Raised Height 138″ (11.5ft)
  • Free Lift 34.4″
  • Side Shift
  • Adjustable Forks 7.9-26″
  • Fork Length 42.1″
  • Zapi Controller
  • Tilt 3/6 Degree
  • 24V AC Drive Motor
  • 3.3 kw Lift Motor
  • Cushion Tires
  • HPS (Hydraulic Power Steering)
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • 24V/320AH Battery Included

Product Info

Model EK16A-138
Lift Electric
Drive Electric
Load capacity(lb)3500
Load center distance(in)20
Wheel base(in)49.2
Lifting height(in)138
Free lifting height(in)34.4
Lowered mast height(in)86.6
Mast/Fork carriage tilt forward/backward( °)3/6
Side Shifting Forks 3-way valve
Overall length(in)107.1
Overall width(in)42.1
Fork size, Thick/Width/Length(in)1.4/4/42.1
Fork adjust width(in)7.9-26
Turning radius(in)58.9
Max.gradient performance,  laden/unladen(%)6/10
Lift speed,laden/unladen(in/s)4.71/10.2
Lowering speed, laden/unladen(in/s)11.8/15.7
Charger(V/A)24V/50A
Driving Motor  AC
Lifting Motor(KW)3.3
Battery voltage(V/Ah)24V/320Ah
Service Weight (lb)5020
