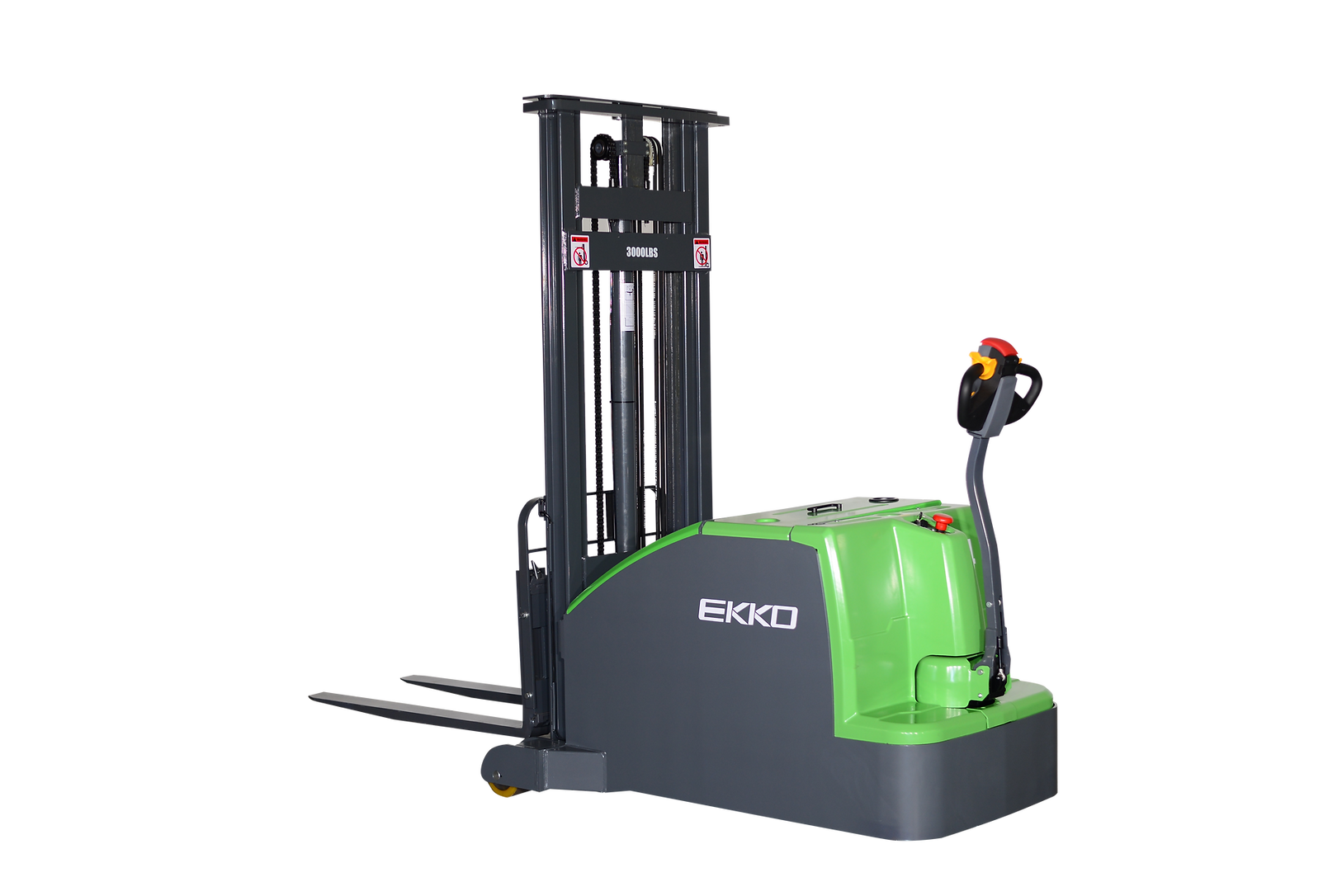

EKKO EK14CS-130Li Lithium Counterbalanced Walkie Stacker, 3,000 lbs Capacity

Description

The EKKO EK14CS-130Li Lithium Counterbalanced Walkie Stacker combines the versatility of a forklift with the compact design of a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouses.



Made from high-quality steel and durable components, the EK14CS-130Li features robust drives that can withstand various terrains, heavy usage, impacts, and directional changes, ensuring dependable performance for any application.



Features:

  • Load Capacity: 3,000 lbs
  • Raised Height: 130″ (10.83 ft)
  • Side-Shifting: Yes
  • Adjustable Forks: 8.6″ – 26″
  • Fork Length: 42.1″
  • Curtis® Controller
  • 24V AC Drive Motor
  • 2.2 kW Lift Motor
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction with Robotic Welding
  • Charger Included
  • Battery Included
  • 3-Year Limited Warranty

Product Info

Model EK14CS-130Li
Drive Type Lithium Walkie Stacker
Type of Operation Lithium Battery
Load Capacity 3,000 lbs
Load Center Distance 24 in
Wheel Base 47 in
Lifting Height 130 in
Side Shifting 4 in
Service Weight 4,330 lbs
Extended Mast Height 158.7 in
Tilt (Forward/Backward) 2° / 5°
Overall Length 109 in
Overall Width 42.1 in
Fork Size

(Thick/Width/Length)

1.4 / 4 / 42.1 in
Fork Adjust Width 8.6 – 26 in
Turning Radius 57 in
Gradient Performance

(Laden/Unladen)

6 / 10 %
Lift Speed

(Laden/Unladen)

2.95 / 3.94 in/s
Lowering Speed

(Laden/Unladen)

5.3 / 4.7 in/s
Charger 24V / 50A
Driving Motor AC 24V / 2500W
Lifting Motor 24V / 2500W
EPS Steering Motor 24V / 200W
Battery 24V / 150 Ah Lithium
