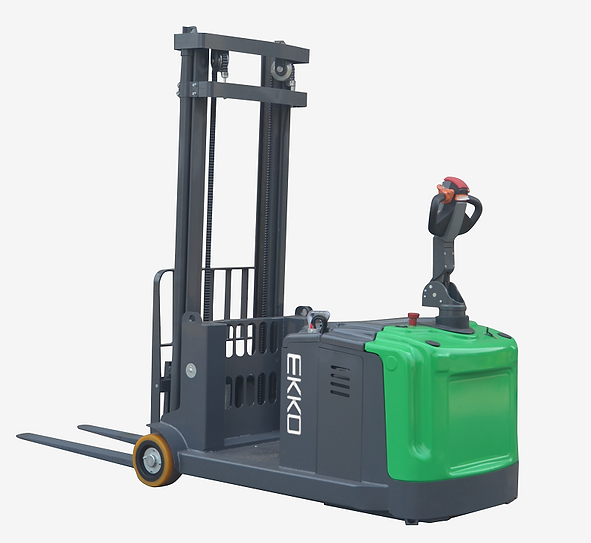

EKKO EK14-130Li Lithium Powered Counterbalanced Walkie Stacker
EKKO EK14-130Li Lithium Powered Counterbalanced Walkie Stacker

EKKO EK14-130Li Lithium Powered Counterbalanced Walkie Stacker

Category:

Description

The EKKO EK14-130Li Lithium Powered Counterbalanced Walkie Stacker is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Load Capacity 3300 lbs
  • Raised Height 130″ (10.83ft)
  • Adjustable Forks 8.6-28.3″
  • Fork Length 45.3″
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V Center Drive Motor
  • 24V Lift Motor
  • Battery 24V/150Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

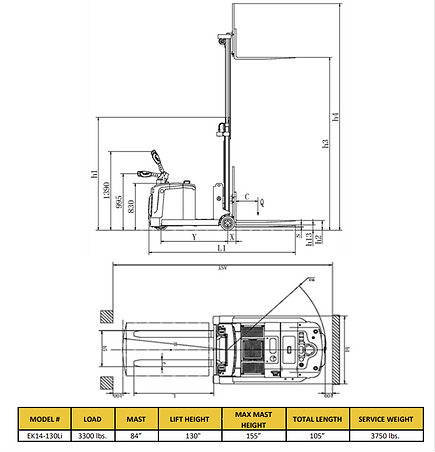

Product Info

Model   EK14-130Li
Drive type   Electric
Type of operation   Walike type
Load Capacity Q (LBS) 3300
Load Centre c (Inch) 24
Distance between fork backrest and front wheel x (Inch) 6
Wheelbase y (Inch) 47
Service Weight（with battery） LBS 3750
Tire material   PU
Driving wheel size Φ×w(Inch) Φ9.8×3.1
Front wheel size Φ×w(Inch) Φ9.84×4.71
No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel   2/1X
Load capacity   Power
Operator type   Stand
Mast/fork carriage tilt, forward/backward α/β (°)  2/5
Lowered mast height h1 (Inch) 84
Free lift height h2 (Inch) 4
Lift height h3 (Inch) 130
Extended mast height h4 (Inch) 155
Height of seat/stand-on platform h7 (mm) 5
Fork carriage width (in) 3.5
Overall Length l1 (Inch) 105
The max driving speed  laden/unladen (in/h) 16850/204724
Overall Width b1 (Inch) 39
Fork Size s/e/l (Inch) 1.4/4/37
Fork Width b5 (Inch) 8.7-28
Ground clearance under mast m1 (Inch) 2.4
Steering Motor   24V/0.2kw
Aisle width for pallets 1000*1200 crossways Ast (Inch) 119
Aisle width for pallets 800*1200 lengthways Ast (Inch) 123
Turing Radius Wa (Inch) 62
Steering Motor   24V/0.2kw
Lifting Speed load/unload (in/s) 4/5.5
Lowered Speed load/unload (in/s) 5.3/4.7
Maximum gradeability load/unload (%) 6/10
Charger   24V/50A
Drive Motor (kW) 2.5
Lift Motor (kW) 3.0
Battery voltage/rate capacity (V/Ah) 24/150AH-Li
