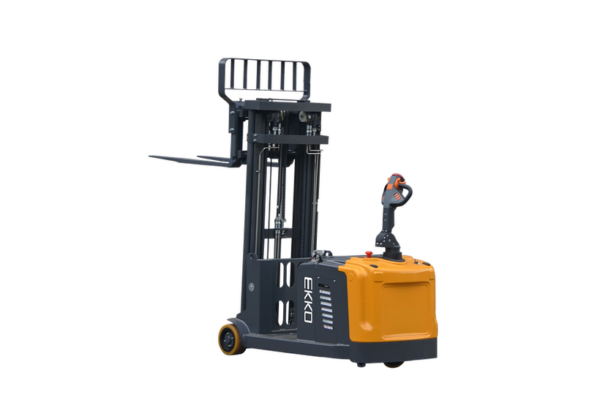

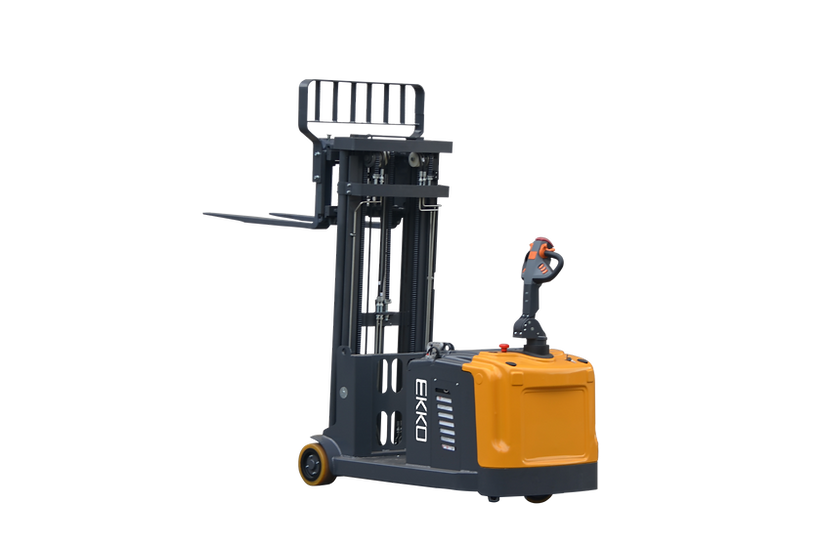

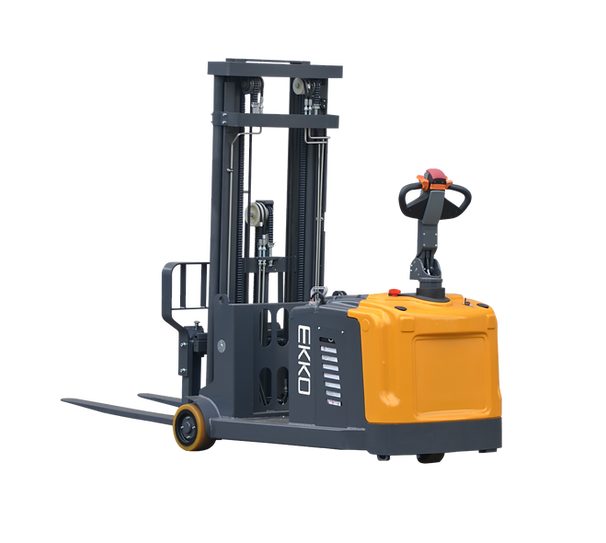

EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING

Description

The EKKO EK13S-177 Fully Powered Counterbalanced Walkie Stacker includes SIDE-SHIFTING and is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 2860 lb

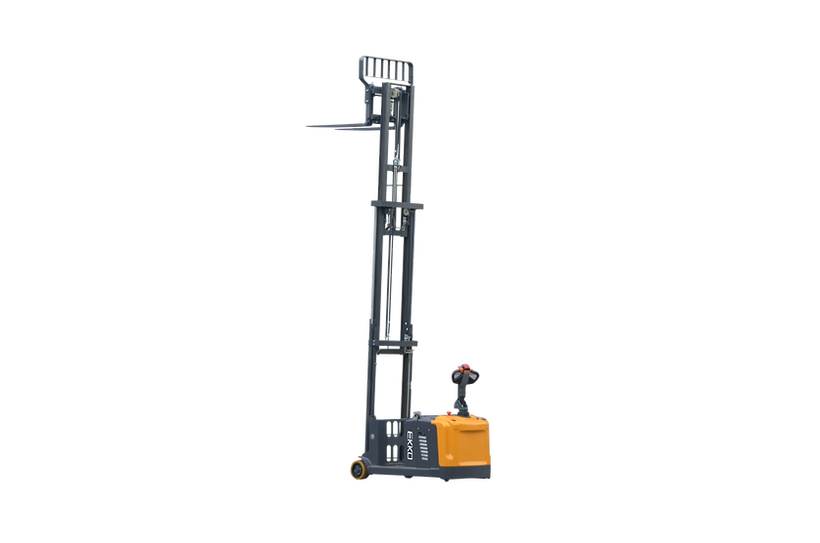

Raised Height 177″ (14.75ft)
SIDE-SHIFTING
Adjustable Forks 8.6-28.3″
Fork Length 45.3″
Tilt 2/5 Degree
Curtis Controller
24V AC Drive Motor
24V Lift Motor
EPS (Electronic Power Steering)
Polyurethane Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger Included
Battery Included
3 Years Limited Warranty

Product Info

Model		EK13S-177
Drive type		Electric
Type of operation		Walike type
Load Capacity	Q (LBS)	2860
Load Centre	c (Inch)	23.6
Distance between fork backrest and front wheel	x (Inch)	5.91
Wheelbase	y (Inch)	46.81
Service Weight（with battery）	LBS	4070
Tire material		PU
Driving wheel size	Φ×w(Inch)	Φ9.84×2.95
Bearing wheel size	Φ×w(Inch)	Φ9.84×4.72
No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel		2/1X
Front wheelbase	b10 (Inch)	34.09
Rear wheelbase	b11 (Inch)	0
Mast/fork carriage tilt, forward/backward	α/β (°)	2/5
Lowered mast height	h1 (Inch)	78.74
Free lift height	h2 (Inch)	59.84
Lift height	h3 (Inch)	177.17
Extended mast height	h4 (Inch)	214.53
Height of seat/stand-on platform	h7 (mm)	5
The height of handle in the operation position	h14 (Inch)	43.5/56.69
Overall Length	l1 (Inch)	109
Body Length	l2 (Inch)	62.52
Overall Width	b1/ b2 (Inch)	39.29
Fork Size	s/e/l (Inch)	1.38/3.94/45.28
Fork Width	b5 (Inch)	8.66-28.35
Ground clearance under mast	m1 (Inch)	3.54
Min Ground clearance	m2 (Inch)	3.39
Aisle width for pallets 1000*1200 crossways	Ast (Inch)	115.95
Aisle width for pallets 800*1200 lengthways	Ast (Inch)	120.28
Turing Radius	Wa (Inch)	56.89
Driving Speed，load/unload	(km/h)	5.2/5.5
Lifting Speed load/unload	(mm/s)	100/120
Lowered Speed load/unload	(mm/s)	136/120
Maximum gradeability load/unload	(%)	6/8
Brake Type		Electromagnetic brake
Drive Motor	(kW)	2.5
Lift Motor	(kW)	2.5
Battery voltage/rate capacity	(V/Ah)	24/210
Battery Weight（±5%）	(lbs)	460
Type of drive control		AC
Noise level	(dB(A))	70
Steering type		EPS
