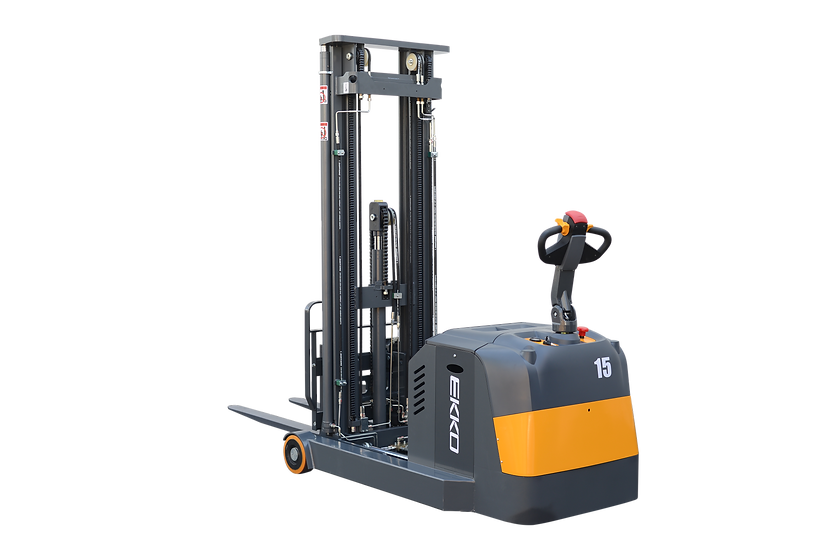

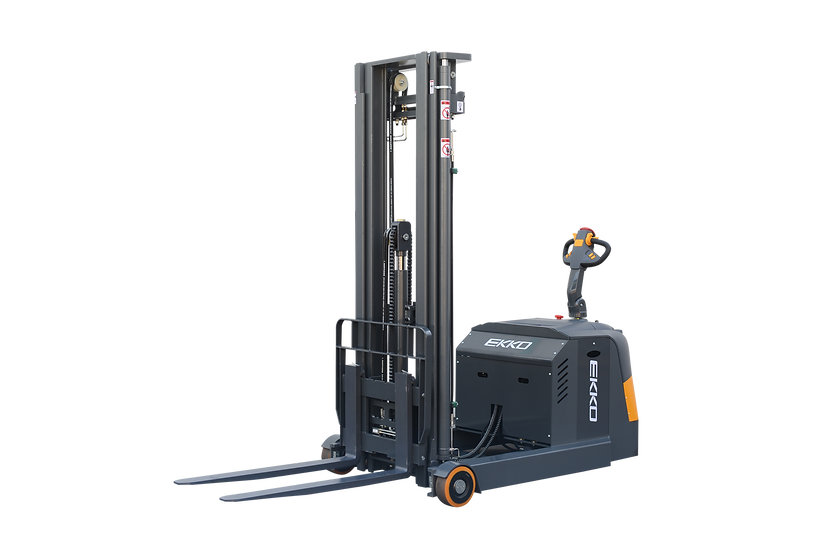

EKKO EH15T Moving Mast Walkie Reach Truck 3300lbs. Cap., 138″ Height

Category:

Description

The EKKO EH15T Moving Mast Walkie Reach Truck is designed with the combination of the versatility of forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Load Capacity 3300lbs.
  • Raised Height 138″ (9.83ft)
  • Reach Distance of 19.7″
  • Adjustable Forks 8.7-29.1″
  • Fork Length 45.2″
  • Curtis Controller
  • EPS (Electronic Power Steering)
  • 24V AC Drive Motor
  • 24V Lift Motor
  • Battery 24V/270Ah Included
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • 3 Years Limited Warranty

Product Info

Model EH15T
Lift Electric
Drive Electric
Load capacity (lbs)3300
Load center distance(in)24
Lifting height(in)138
Lowered mast height(in)93.3
Overall length(in)111.6
Overall width(in)41
Fork size, Thick/Width/Length(in)1.4/4/45.2
Fork adjust width(in)8.7-28
Reach Distance(in)19.7
Turning radius(in)67
Charger 24V/40A
Driving Motor AC 24V/2.5kw
Steering Motor 24/0.2kw
Lifting Motor 24V/3kw
Battery voltage 24V/270AH
Service Weight (lbs)4200
