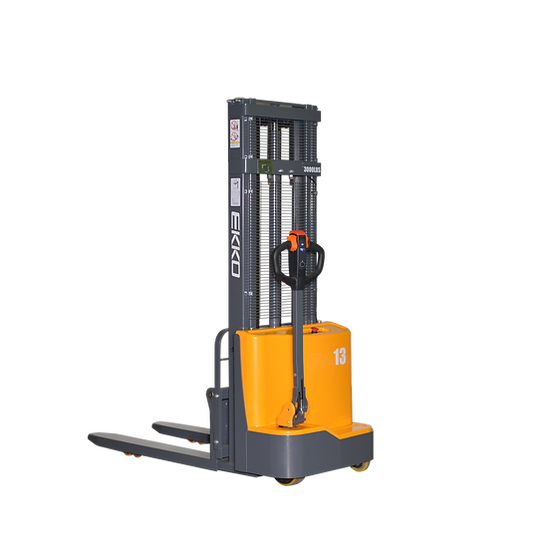

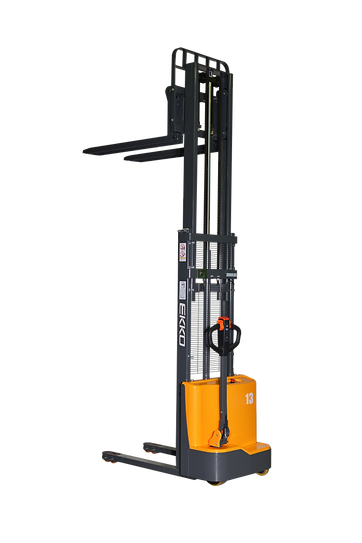

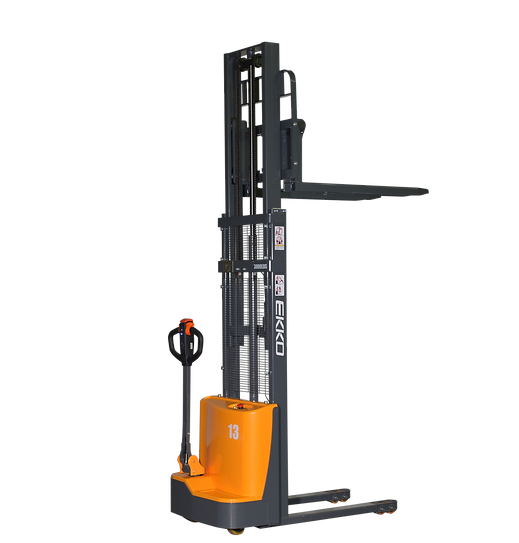

EKKO EB13CD Full Powered Fork Over Stacker 2800 lb Cap., 118″ Height

Description

The EKKO EB13CD Electric Fork Over Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.





  • Load Capacity 2800 lb
  • Raised Height 118”
  • Fixed Legs and Forks
  • Fork Length 45.28″
  • 24V Lift Motor
  • Battery 2*12V/85Ah
  • Polyurethane Wheels

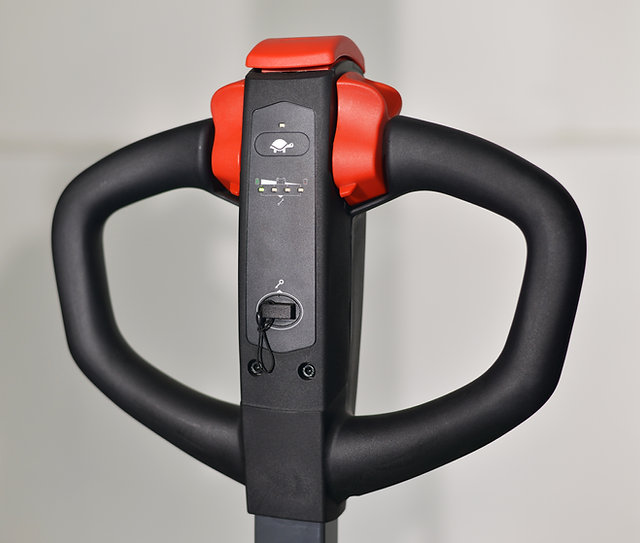

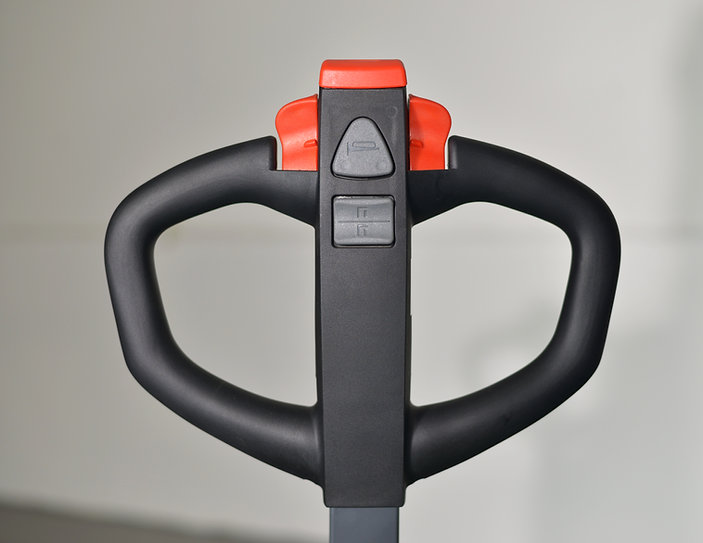

  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding

Product Info

Model EB13CD
Load capacity(lbs)2800
The max. lifting height(in)118”
Load center distance(in)24
Fork length(in)45.28
Single fork width(in)5.59
Overall fork width (Inner/outer)(in)11.8 / 26.8
Lowered fork height(in)3.54
Turning radius(in)55.1
Overall length(in)71.7
Extended mast height(in)147.6
Lowered mast height(in)82.3
Battery voltage (dimensions)(in)2×12V/85AH
Internal ChargerV/A24V/15A
Lifting MotorV/Kw2.2kw.
Driving Motor 0.75kw.
Service Weight (lbs)992
