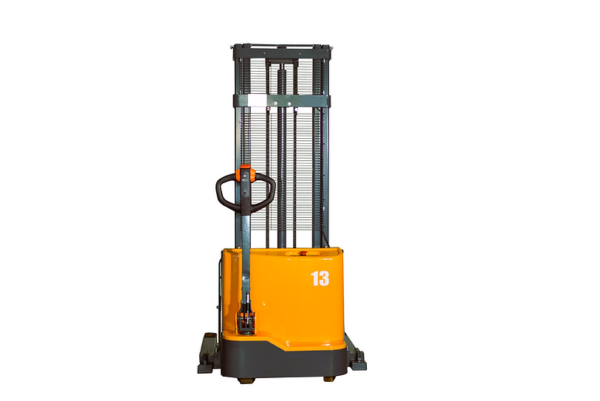

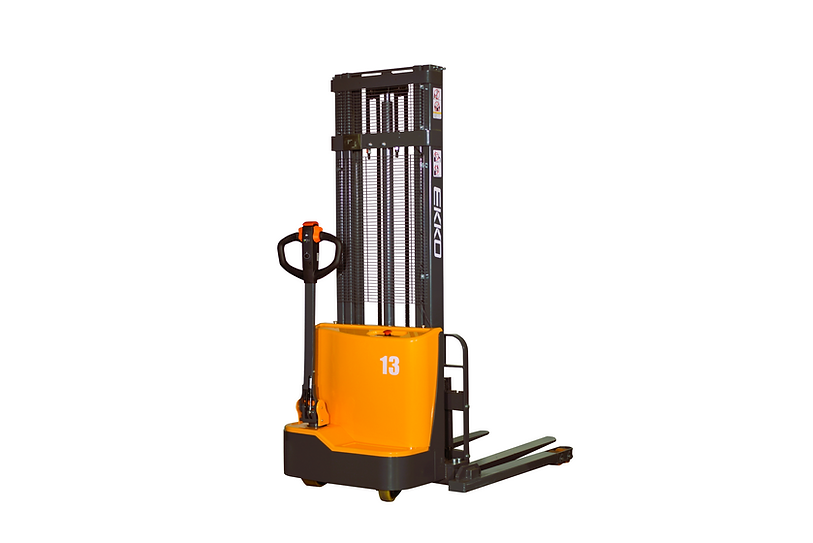

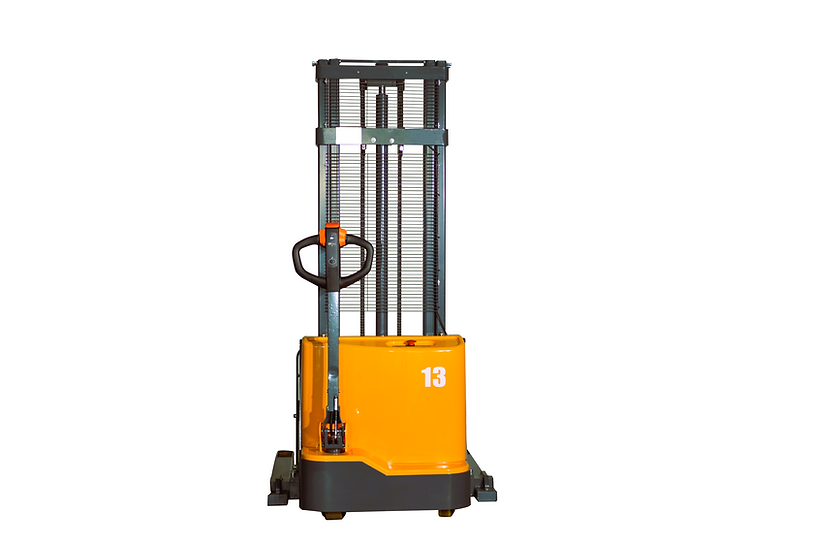

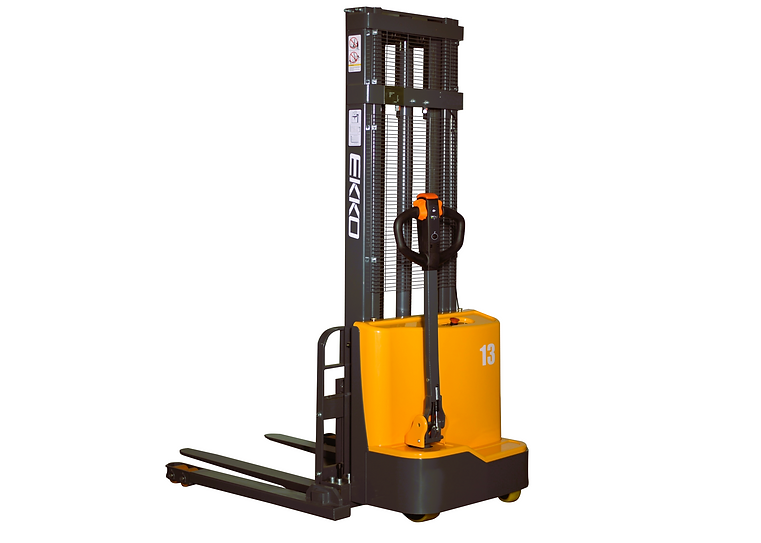

The EKKO EB13C-118 Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
| Model | EB13C-118 | |
| Load capacity | (lbs) | 2800 |
| The max. lifting height | (in) | 118” |
| Load center distance | (in) | 24 |
| Fork length | (in) | 45.3 |
| Single fork width | (in) | 4 |
| Fork Adjustment Width | (in) | 8.6-32.1 |
| Lowered fork height | (in) | 2.56 |
| Adjustable legs | (in) | 35.4-51.2 |
| Turning radius | (in) | 56.1 |
| Overall length | (in) | 73.4 |
| Max Overall width | (in) | 61 |
| Extended mast height | (in) | 127.6 |
| Lowered mast height | (in) | 75.2 |
| Battery voltage | (V/Ah) | 24V/85Ah |
| Internal Charger | V/A | 24V/10A |
| Lifting Motor | Kw | 2.2 kw |
| Driving Motor | 0.75 kw | |
| Service Weight | (lbs) | 1345 |
