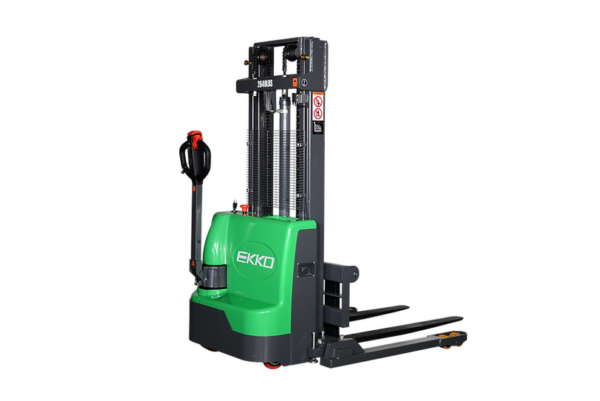

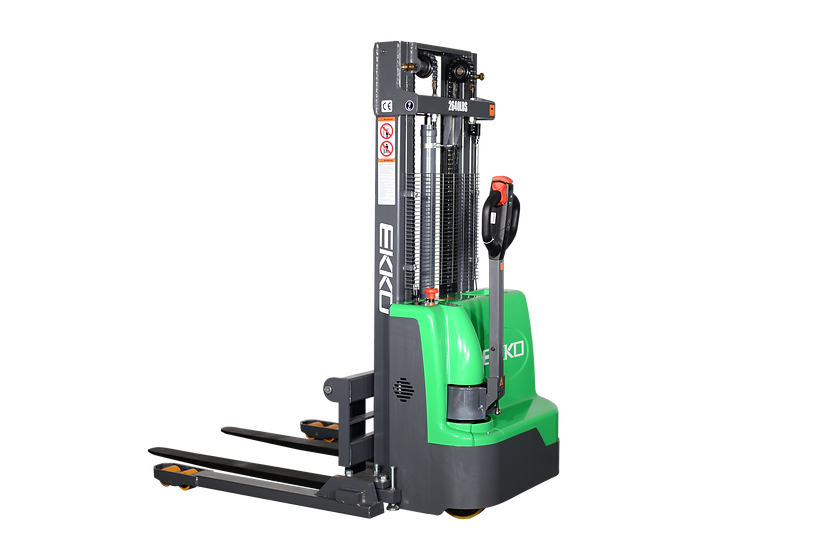

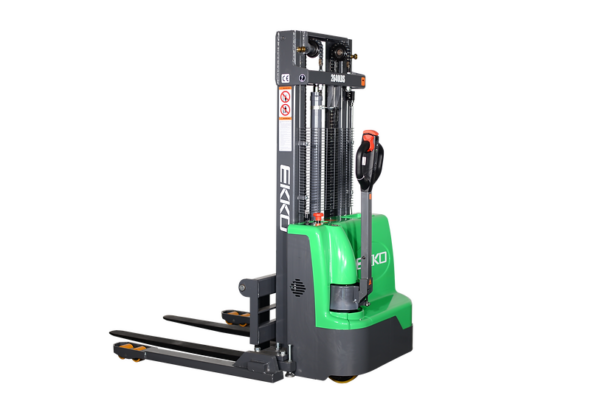

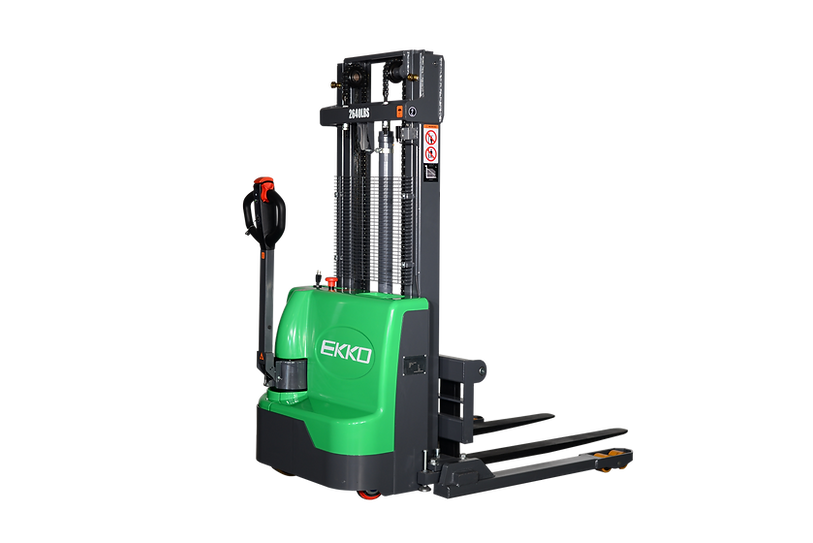

EKKO EB12E-98Li Lithium Iron Phosphate Straddle Stacker 72″Mast, 98″ Lift

Description

The EKKO EB12E-98Li LITHIUM IRON PHOSPHATE Electric Straddle Stacker with a 72″ lowered mast can get underneath any doorway and is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Load Capacity 2640 lb
  • Lowered Mast 72″
  • Raised Height 98”
  • Adjustable Forks 8.3-33.5“
  • Adjustable Legs 45.7-59.1”
  • Fork Length 45.3“
  • Curtis Instrument Controller
  • 24V Drive Motor
  • 24V Lift Motor
  • Battery 24V/50Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • 3 Year Limited Warranty

Product Info

ModelEB12E-98Li
Power unitWalkie
Operate typeElectric
Load capacityQ (LBS)2640
Load Centerc (Inch)24
Axle center to fork facex (Inch)28
Wheel Basey (Inch)45.4
Service weightLBS1300
TyresPolyurethane wheels
Front wheel size,numberΦ×w(Inch)Φ3.1×2.7 ,4
Rear wheel size ,numberΦ×w(Inch)Φ8.3*2.7,1
Balance wheel size,numberΦ×w(Inch)Φ6*2.3  1
Lowered mast heighth1 (Inch)72.05
the max Lift heighth3 (Inch)98.42
Extended mast heighth4 (Inch)119.96
Operating handle height at drive position  (min/Maxh14 (Inch)34.25/47.24
Lower fork heighth13 (Inch)2.56
Overall Lengthl1 (Inch)71
Length to Fork facel2 (Inch)23.82
Fork Dimension:s/e/l (Inch)1.38/3.94/45.28
Outside width betwween two forkb5 (Inch)8.27-33.47
Min ground clearancem2 (Inch)0.95
Turning radiusWa (Inch)52.6
Travel speed, laden/unladenkm/h4.0/4.2
Lift speed, laden/unladenm/s92/136
Lowering speed. Laden/unladenm/s112/98
Maximum climbing ability  Laden/unladen%6/8
Service brakeElectromagnetic
Life motorkw2.2
Driving motorkw0.75
Steering motorkw/
Battery according to Din 43531/35/36 a,b,cno
Battery voltage, nominal capacityv/ah24 V/50AH
battery weightLBS29
Type of controlDC
Noise level at operator’s ear69
Steering typeMechanical
