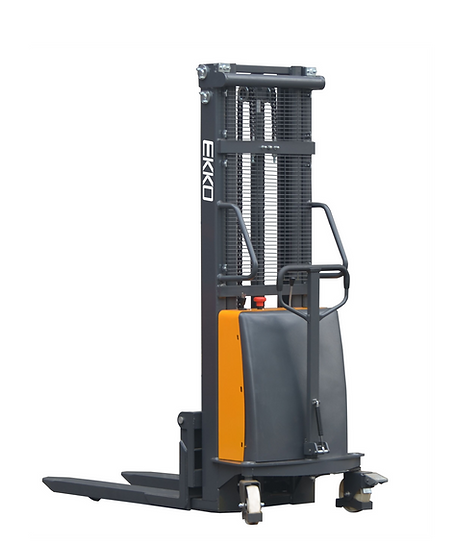

EKKO EA15E Semi-Electric Fork-Over Stacker 3300lbs. Cap., 138" Height
EKKO EA15E Semi-Electric Fork-Over Stacker 3300lbs. Cap., 138" Height

EKKO EA15E Semi-Electric Fork-Over Stacker 3300lbs. Cap., 138″ Height

Category:

Description

The EKKO EA15CE Semi-Electric Fork-Over Stacker is designed with the combination of the versatility of forklift and a pallet stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assu



  • Load Capacity 3300lbs.
  • Raised Height 138″ (11.5ft)
  • Fork Length 45.3″
  • Power Lifting
  • Manual Drive
  • Adjustable Forks
  • Internal Charger 12V/20A Included
  • Battery 12V 120Ah Included
  • Ergonomic Handle
  • Steel Construction
  • Robotic Welding
  • 3 Years Limited Warranty

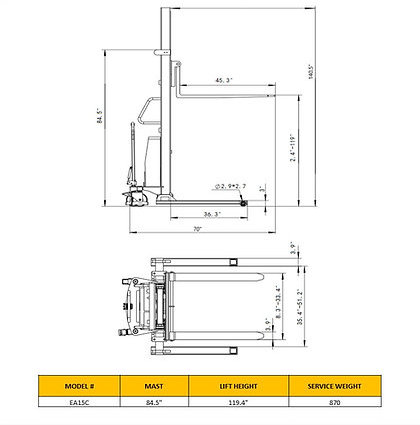

Product Info

Model EA15E
Load Capacity (lb)3300
Lifting height Max.(in)138
Load center distance(in)24
Fork length(in)45.3
Single fork width(in)5.9
Overall fork width(in)24.5
Lowered fork height(in)2.4
Fixed leg length(in)45.3
Fixed leg width, single(in)5.9
Width between legs(in)12.75
Turning radius(in)53.2
Overall length(in)73
Overall width  max(in)59
Extended mast height(in)140.5
Lowered mast height(in)81.8
Battery Voltage(V/Ah)12V/120Ah
Charger(V/A)12V/20A
Lift Motor (V/W)DC 12V/1500W
Service Weight (lb)910
